Fuel System - Specifications





Specification

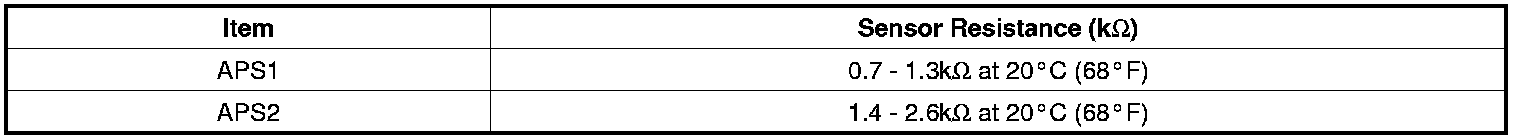

Sensor
Accelerator Position Sensor (APS)

- Type: Variable resistor type

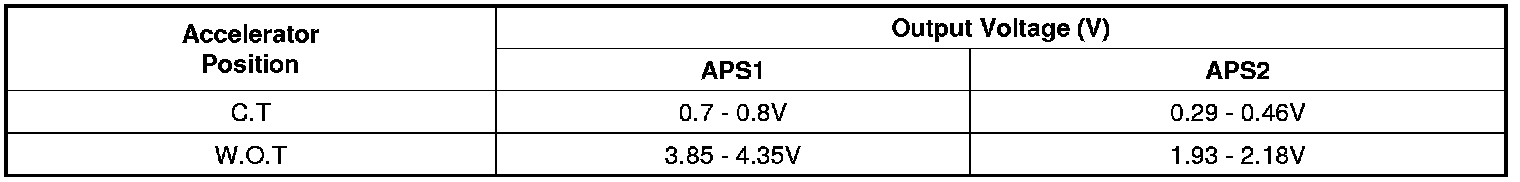

- Specification (When reference voltage = 5.0V)
