Throttle Position Sensor





Specification

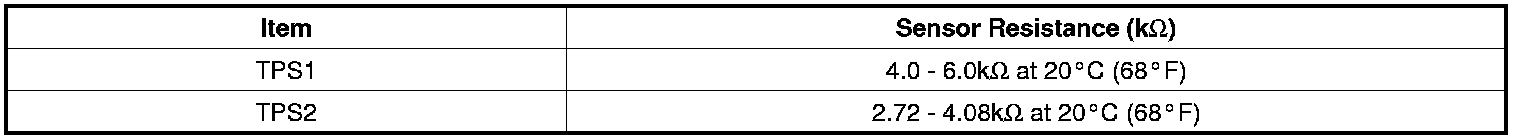

Sensor
Throttle Position Sensor (TPS)

- Type: Variable resistor type

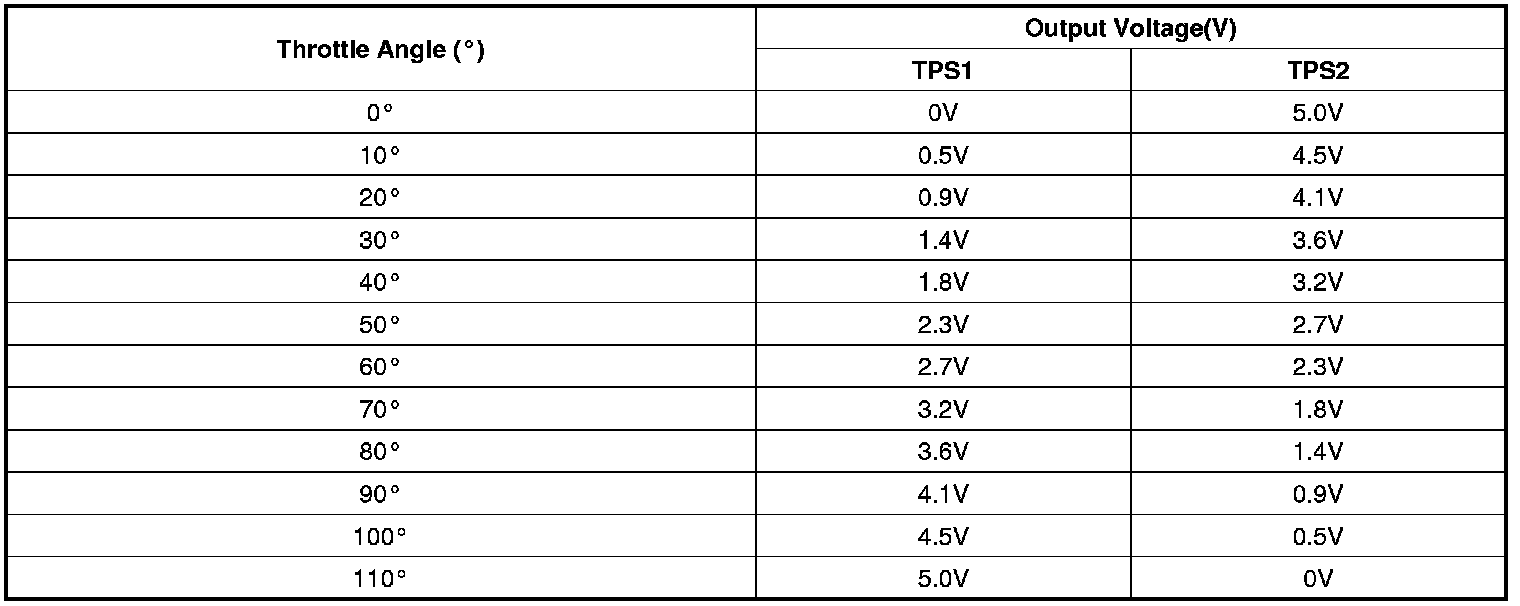

- Specification (When reference voltage = 5.0V)
