ECM Update (Service Campaign TG9) (SC TG9)

Publication date: 2011-10-01
Reference number: SC TG9
Supersedes refnos: 11-01-035

ECM UPDATE (SERVICE CAMPAIGN TG9)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 11-01-035, Date of Issue: October, 2011

HYUNDAI:	2010 ACCENT 1.6L, GENESIS 4.6L
GROUP:	CAMPAIGN

REVISION HISTORY

IMPORTANT: Dealers must perform this Service Campaign on all affected vehicles whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the service department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

DESCRIPTION

This bulletin provides information related to the ECM software update of following listed vehicles

APPLICABLE VEHICLES

2010 MY ACCENT (MC) with 1.6L engine
2010 MY GENESIS (BH) with 4.6L engine

GDS INFORMATION

EVENT #	DESCRIPTION
209	"MC 1.6 P0300, P0128, P0461 DTC LOGIC"
210	"09~10MY BH 4.6 ECM UPDATE."

WARRANTY INFORMATION

Model	Op Code	Operation	Op Time	Causal Part #	Nature Code	Cause Code
MC 1.8L	10C105R0	ECM UPGRADE	0.3	39132-26AL5	N69	C40
BH 4.6L	10C105R1	ECM UPGRADE	0.3	39110-3F271	N69	C40

NOTE: Submit claim on Campaign Claim Entry Screen.

ROM ID INFORMATION TABLE

Verify the ECM ROM ID before updating the vehicle's software. Refer to the table below.

ROM ID INFORMATION

Model	MY	ECUP/N	T/M	RM ID
Model	MY	ECUP/N	T/M	PREVIOUS	NEW
Accent 1.6L	10MY	39132-26AL0	MT	GMC-AN6CES0-5000~GMC-AN6CES2-5000	GMC-AN6CEF0-5000
		39133-26AL0	MT	GMC-BN6CES0-5000	GMC-BN6CEF0-5000
		39132-26BL0	MT	GMC-AC6CES0-5000~GMC-AC6CES3-5000	GMC-AC6CEF0-5000
		39133-26BL0	MT	GMC-BC6CES0-5000	GMC-BC6CEF0-5000
		39132-26AL5	AT	GMC-AN6CPS0-A000~GMC-AN6CPS2-A000	GMC-AN6CPF0-A000

ROM ID INFORMATION

MODEL	MY	ECM P/N	ROM ID
MODEL	MY	ECM P/N	PREVIOUS	NEW
Genesis 4.6L	10MY	39110-3 F271	GBH-AN6AFS1-C100	GBH-AN6AFS2-C100
Genesis 4.6L	10MY R/C	39110-3F272	GBH-AU6AFS0-C100	GBH-AU6AFS1-C100

GENERAL PRECAUTIONS

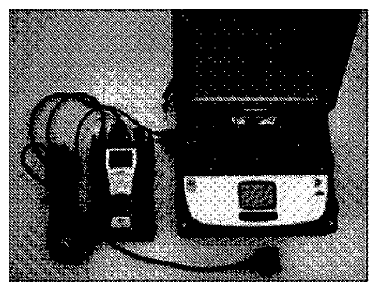

Connect the USB cable between the GDS and the VCI.
Connect the 16-pin DLC connector from the VCI into the DLC located under the driver's side dash

NOTE: Make sure the battery icon at the bottom right of the GDS laptop shows at least 50%; if not, charge the GDS or attach a battery charger.
Turn off all lights (Do not leave the headlight switch in auto mode) and all accessories (including heater/air conditioner/fan, audio, heated seats, rear defroster, etc) to ensure the battery will not be discharged during the update.
Perform the update with the ignition key in the ON position.
Do not disconnect any cables connected to the vehicle or the GDS during the update
Do not start the engine or turn the ignition switch OFF during the update.

NOTE: Confirm your GDS has the most recent version. If not, connect the GDS to an Internet port, open the GDS home page and select "Update". Refer to instructions on hmaservice.com if necessary.

NOTE: If you encounter GDS related problems, call the GIT Helpline at 888-437-0308

SERVICE PROCEDURE

GDS AUTO MODE ECM UPDATE PROCEDURE

From the GDS home page, select ECU Upgrade. If necessary, select the VIN.
Select Engine as the system and then select OK .
Select Auto Mode and then select Next .
From the System tab, select Engine and then select OK . The GDS will read the ROM ID. Confirm the ROM is applicable as shown on Page 1, "ROM ID Information".
Select update event #209 for Accent (MC) or #210 for Genesis (BH) 4.6L . Select Upgrade .
If the screen indicates "Voltage is OK" (voltage > 12 volts), select OK . If not, select CANCEL and charge the vehicle battery by running the engine for 10 minutes.
Updating will occur until 100% is reached on the bar graph. At the prompt, turn the ignition key OFF for 10 seconds, then turn it ON and select OK .
The GDS will confirm that ECM reprogramming is successfully finished. Select OK .
If the ECM update was not successful, go to GDS MANUAL MODE ECM UPDATE PROCEDURE .
Check for DTC in all systems and Erase All DTC that stored due to loss of CAN communication during the ECM Update.
Turn OFF ignition 10 seconds then turn ON before going to engine start.
Start the engine to confirm proper operation.

GDS MANUAL MODE ECM UPDATE PROCEDURE

NOTE:

GDS Manual Mode is intended for recovery of an ECM Update should it begin but then later fail in process in the Auto Mode.
The ECM connectors must be disconnected for 15 minutes to reset its contents then perform this Manual Mode Update.
Do not force Manual Mode if you get an error in Auto Mode that the vehicles Current ROM ID did not apply.
It is critical to identify the correct ECM Part Number in the PASSWORD table else the ECM may be permanently damaged. It is recommended to remove ECM and read it from the label If not sure which choice.

From the GDS home page, select ECU Upgrade. If necessary, select the VIN.
Select Engine as the system and then select OK .
Select Manual Mode and then select Next.
From the System tab, select Engine and then select OK .
Select update event #209 for Accent (MC) or #210 for Genesis (BH) 4.6L then select Upgrade .
Be certain to enter the exact appropriate password from the table on the next page and select OK. See the important NOTE above .
The remaining steps are same as Steps 6~12 of the Auto Procedure.

PASSWORD DESCRIPTION

MENU	PASSWORD
BH 4.6 09MY: 39110-3F270	3270
BH 4.6 10MY: 39110-3F271	3271
BH 4.6 10MY R/C: 39110-3F272	3272

PASSWORD DESCRIPTION

Menu	Password
10MY MC1.6MT: 39132-26AL0	2260
10MY MC1.6MT: 39133-26AL0	3260
10MY MC1.6MT: 39132-26BL0	2261
10MY MC1.6MT: 39133-26BL0	3261
10MY MC1.6AT: 39132-26AL5	2265
