Circuit Diagram

[A/T]

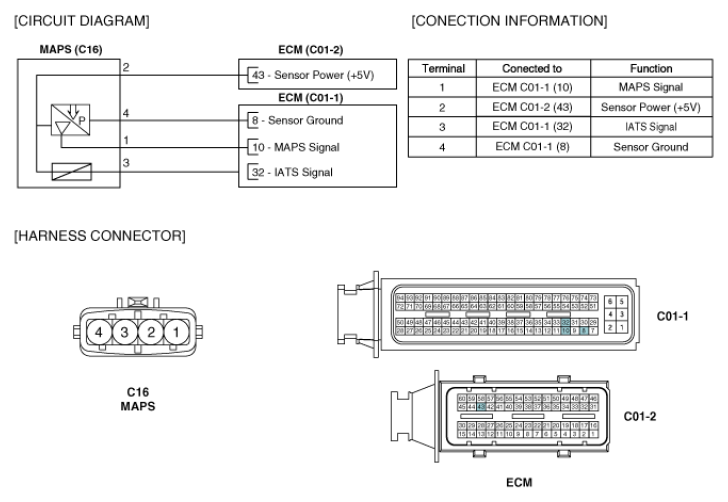

Fig 1: Intake Air Temperature Sensor Circuit Diagram - A/T
G06879433Courtesy of HYUNDAI MOTOR CO.

[M/T]

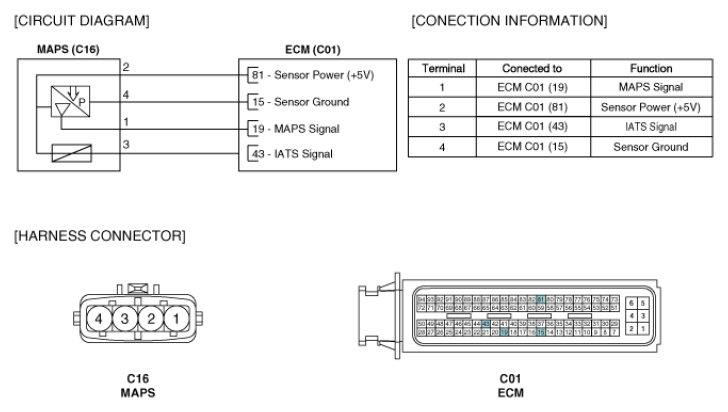

Fig 2: Intake Air Temperature Sensor Circuit Diagram - M/T
G06879434Courtesy of HYUNDAI MOTOR CO.
