Circuit Diagram

[A/T]

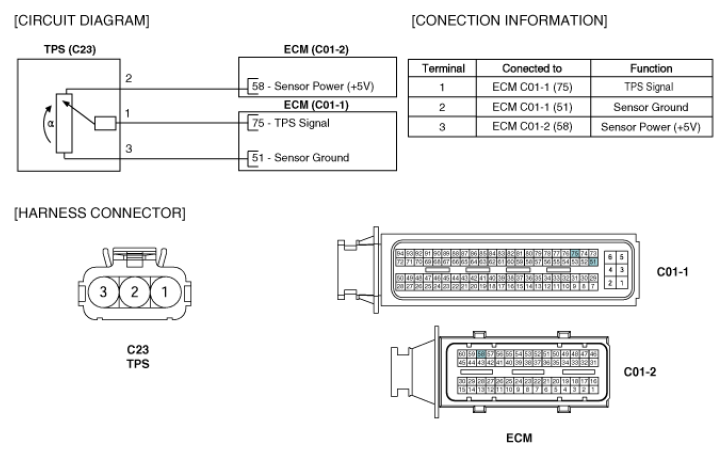

Fig 1: Throttle Position Sensor Circuit Diagram - A/T
G06879439Courtesy of HYUNDAI MOTOR CO.

[M/T]

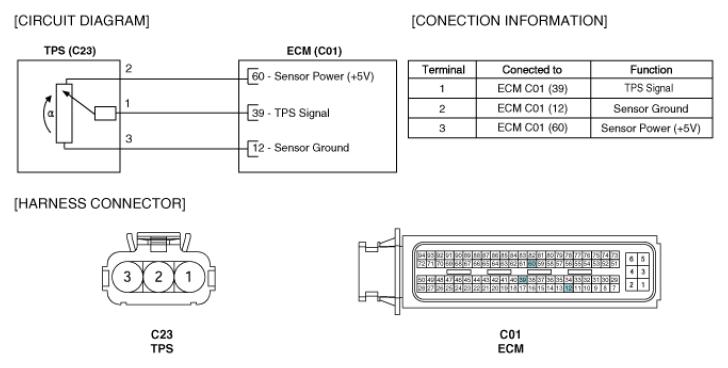

Fig 2: Throttle Position Sensor Circuit Diagram - M/T
G06879440Courtesy of HYUNDAI MOTOR CO.
