Circuit Diagram

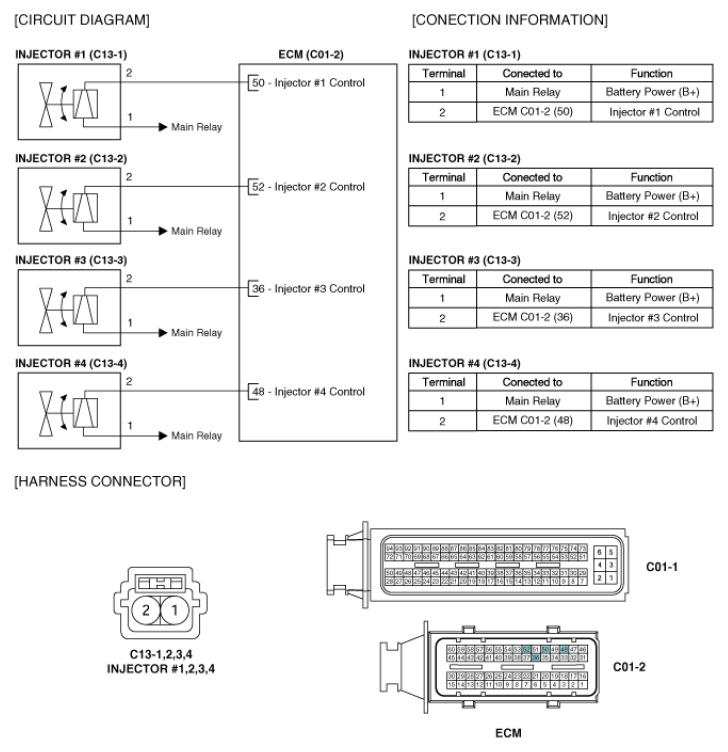

[A/T]

Fig 1: Injector Circuit Diagram - A/T
G06879461Courtesy of HYUNDAI MOTOR CO.

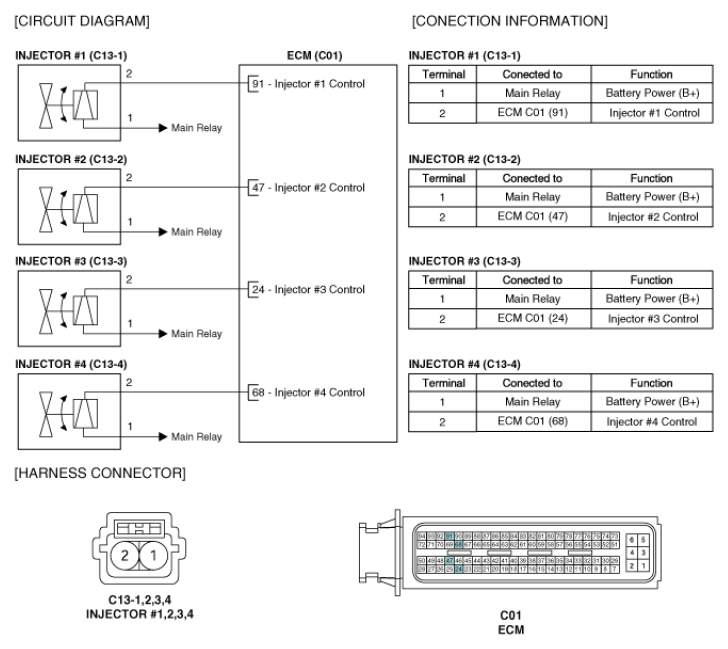

[M/T]

Fig 2: Injector Circuit Diagram - M/T
G06879462Courtesy of HYUNDAI MOTOR CO.
