Resistance Inspection

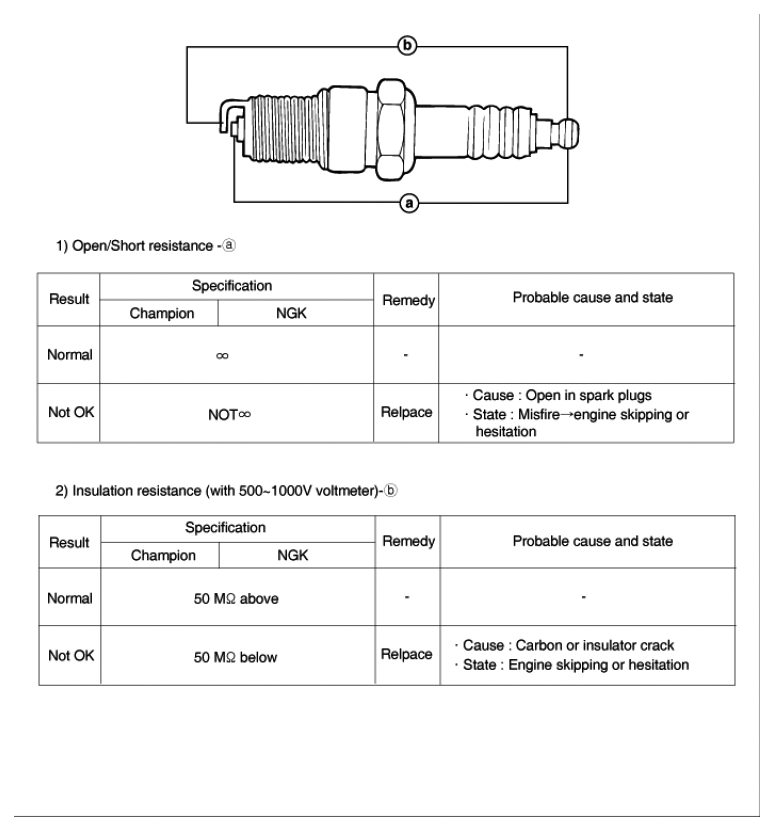

Fig 1: Identifying Electrode Insulation
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
