Function Of Safety Power Window

When driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When detect the force of 100N during the window rising, window is reversed.

2. Length of window reversing (except holding the auto-up switch)
   1. When it detects jamming within 4mm ~ 250mm from top of the door.

      → Window is reversed until 300mm from top of the door.

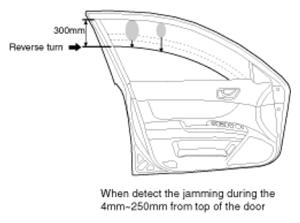

      Fig 1: Identifying Length Of Window Reversing

      Courtesy of HYUNDAI MOTOR CO.
   2. When it detects jamming over 250mm from top of the door.

      → Window is reversed until 50mm from jamming position.

      Fig 2: Identifying Window Jamming Dimension

      Courtesy of HYUNDAI MOTOR CO.
3. Length of window reversing (holding the auto-up switch)
   1. When it detects jamming while holding the auto-up switch.

      → Window is reversed until 25mm from jamming position.

   2. Auto-up function is not available during the 5 seconds from above condition.

      → When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)

   3. When holding the auto-up switch after 5 seconds from above condition.

      → Window is reverse until 25mm from jamming position.

   Fig 3: Identifying Length Of Window Reversing (Holding Auto-Up Switch)

   Courtesy of HYUNDAI MOTOR CO.
4. Safety function is not available area

   Safety function is not available during the 4mm from top of the door.
