Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim panel. (Refer to the)FRONT DOOR
  3. Disconnect the connector (6P) from the motor.
    Fig 1: Identifying Front Power Window Motor Terminal Layout
    G07250269Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

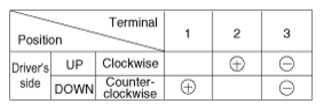

    Fig 2: Terminal Continuity Chart
    G07250270Courtesy of HYUNDAI MOTOR CO.
