Power Window Main Switch

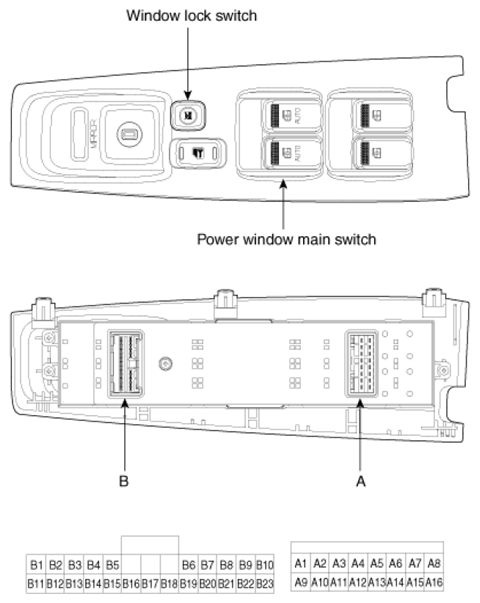

Fig 1: Identifying Power Window Main Switch Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
