Components and Components Location: Components

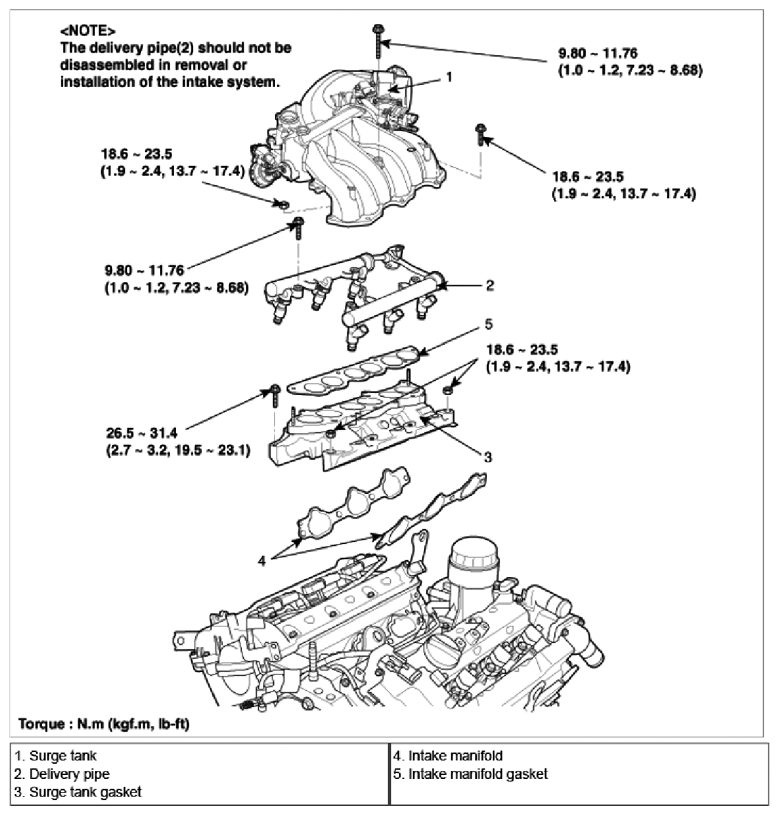

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G06804882Courtesy of HYUNDAI MOTOR CO.
