Repair Procedures: Removal

Drain engine oil.
Using SST (09215-3C000) remove lower oil pan (A).

Fig 1: Removing Lower Oil Pan Using SST (09215-3C000)
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to damage the contact surfaces of upper oil pan and lower oil pan.
CAUTION:
- Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
- After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
- Do not use the SST as a prybar. Hold the tool in position (on the gasket line) and tap in with a light hammer.
  It can result in damage of the SST.
Remove oil pump chain cover (A).

Fig 2: Locating Oil Pump Chain Cover
Courtesy of HYUNDAI MOTOR CO.
Remove oil pump chain sprocket (A).

Fig 3: Locating Oil Pump Chain Sprocket
Courtesy of HYUNDAI MOTOR CO.
Remove oil pump (A).

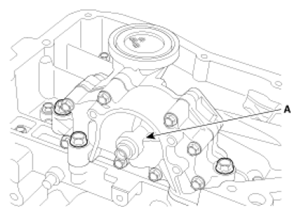

Fig 4: Locating Oil Pump
Courtesy of HYUNDAI MOTOR CO.
