Wave Form

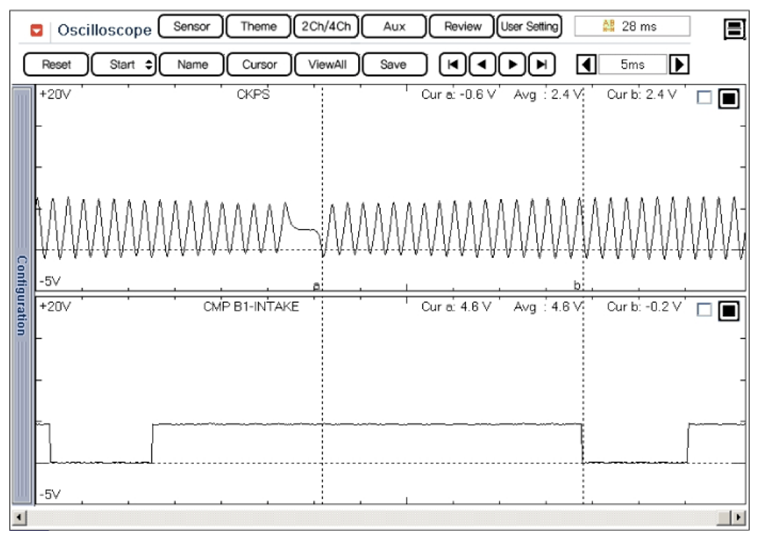

Fig 1: Normal Waveform Of CKPS & CMPS
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
