Circuit Diagram

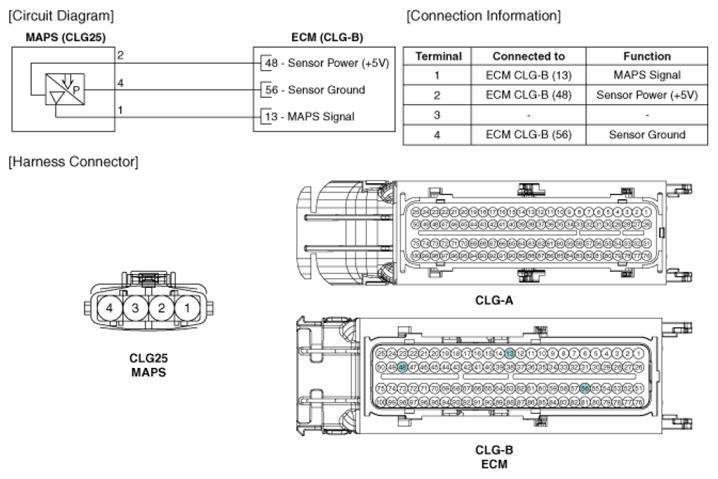

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
