Mass Air Flow Sensor (MAFS)
>>
Schematic Diagram
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

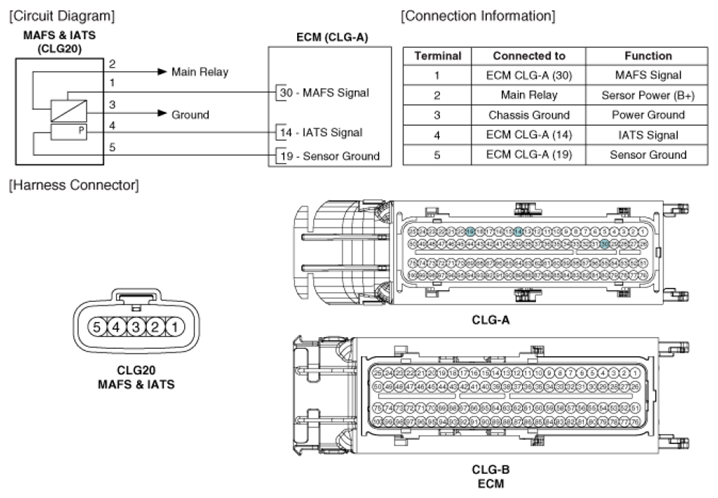

Fig 1: Mass Air Flow Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
