Electrical Circuit Inspection Procedure

• Check Open Circuit
  1. Procedures for Open Circuit
     1. Continuity Check
     2. Voltage Check

        If an open circuit occurs (as seen in [Fig 1]), it can be found by performing Step 2 (Continuity Check Method) or Step  2 (Voltage Check Method) as shown below.

        Fig 1: Checking Open Circuit

        Courtesy of HYUNDAI MOTOR CO.
  2. Continuity Check Method
     NOTE: When measuring for resistance, lightly shake the wire harness above and below or from side to side.

  Specification (Resistance)

  1Ω or less → Normal Circuit

  1MΩ or Higher → Open Circuit

  1. Disconnect connectors (A), (C) and measure resistance between connector (A) and (C) as shown in [Fig 2]. In [Fig 2] the measured resistance of line 1 and 2 is higher than 1MΩ and below 1 Ω respectively. Specifically the open circuit is line 1 (Line 2 is normal). To find exact break point, check sub line of line 1 as described in next step.
     Fig 2: Measuring Resistance Between Connectors

     Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect connector (B), and measure for resistance between connector (C) and (B1) and between (B2) and (A) as shown in [Fig 3]. In this case the measured resistance between connector (C) and (B1) is higher than 1MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).
     Fig 3: Measuring Resistance Between Connector C And B1 And Between B2 And A

     Courtesy of HYUNDAI MOTOR CO.
• Voltage Check Method
  1. With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each connectors (A), (B) and (C) as shown in [Fig 4].

     The measured voltage of each connector is 5V, 5V and 0V respectively. So the open circuit is between connector (C) and (B).

     Fig 4: Measuring Voltage Between Chassis Ground And Terminal 1 Of Connectors A, B And C

     Courtesy of HYUNDAI MOTOR CO.

• Check Short Circuit
  1. Test Method for Short to Ground Circuit
     1. Continuity Check with Chassis Ground

        If short to ground circuit occurs as shown in [Fig 5], the broken point can be found by performing Step 2 (Continuity Check Method with Chassis Ground) as shown below.

     Fig 5: Checking Short Circuit

     Courtesy of HYUNDAI MOTOR CO.
  2. Continuity Check Method (with Chassis Ground)
     NOTE: Lightly shake the wire harness above and below, or from side to side when measuring the resistance.

Specification (Resistance)

1Ω or less → Short to Ground Circuit

1MΩ or Higher → Normal Circuit

1. Disconnect connectors (A), (C) and measure for resistance between connector (A) and Chassis Ground as shown in [Fig 6].

   The measured resistance of line 1 and 2 in this example is below 1 Ω and higher than 1MΩ respectively. Specifically the short to ground circuit is line 1 (Line 2 is normal). To find exact broken point, check the sub line of line 1 as described in the following step.

   Fig 6: Measuring Resistance Between Connector A And Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.
2. Disconnect connector (B), and measure the resistance between connector (A) and chassis ground, and between (B1) and chassis ground as shown in [Fig 7].

   The measured resistance between connector (B1) and chassis ground is 1Ω or less. The short to ground circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

   Fig 7: Measuring Resistance Between Connector A And Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.

• Testing For Voltage Drop

  This test checks for voltage drop along a wire, or through a connection or switch.

  1. Connect the positive lead of a voltmeter to the end of the wire (or to the side of the connector or switch) closest to the battery.
  2. Connect the negative lead to the other end of the wire. (or the other side of the connector or switch)
  3. Operate the circuit.
  4. The voltmeter will show the difference in voltage between the two points. A difference, or drop of more than 0.1 volts (50mV in 5V circuits), may indicate a problem. Check the circuit for loose or dirty connections.

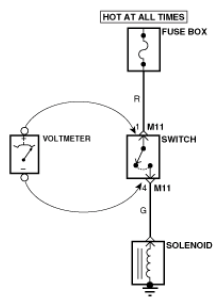

  Fig 8: Testing For Voltage Drop

  Courtesy of HYUNDAI MOTOR CO.
