Components Location

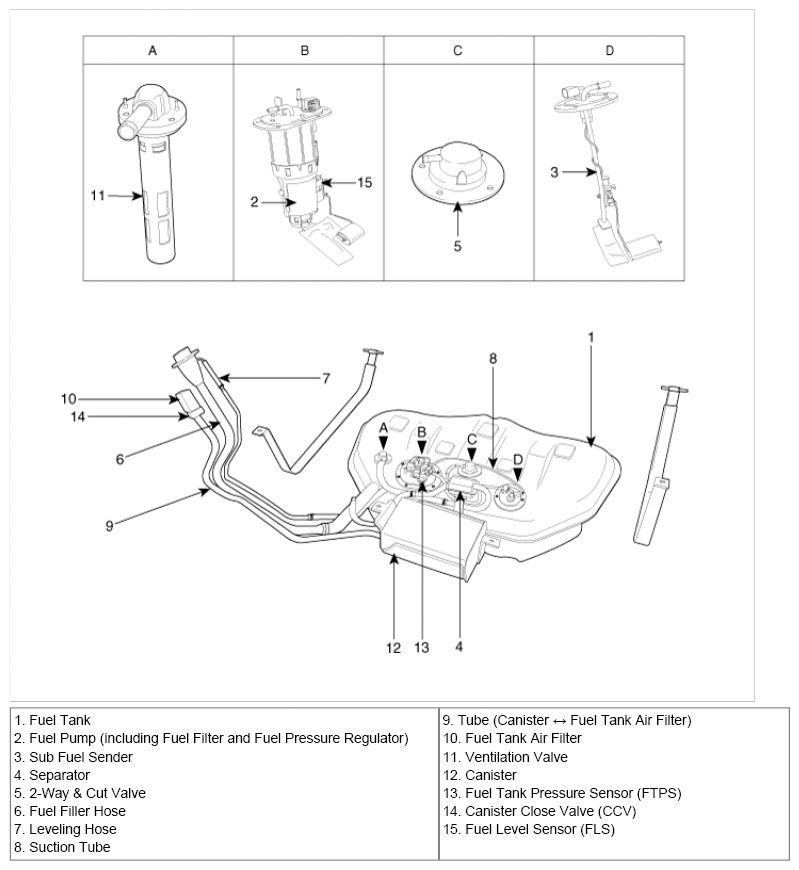

Fig 1: Fuel Delivery System Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
