Components and Components Location: Components: Notes

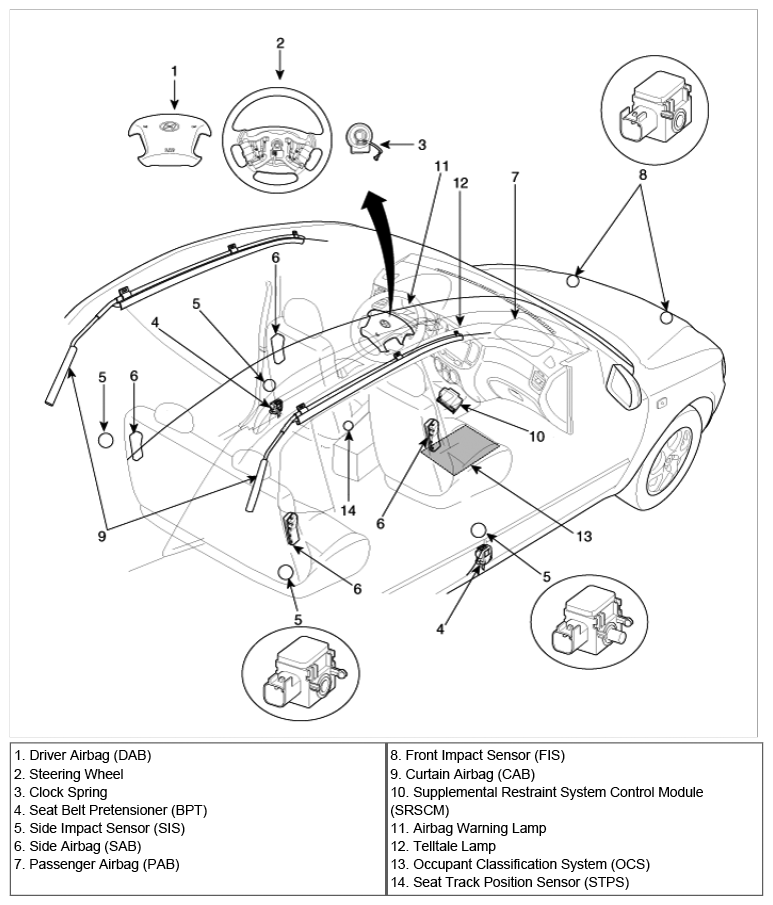

Fig 1: Restraint System Components Location

G06801899

Courtesy of HYUNDAI MOTOR CO.
