Repair Procedures: Removal

Remove the battery and the battery tray. (Refer to REMOVAL AND INSTALLATION .)
Remove the under cover (A).
Under cover installation bolt:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

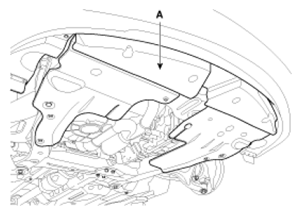

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Replace new gasket and the plug after driving the automatic transaxle fluid by removing the drain plug.
(Refer to "REPAIR PROCEDURES " in this group.)
Remove the valve body cover (A) and eyebolt (B).
Tightening torque:
1. 12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
2. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
CAUTION: The gasket of the eyebolt use new one.

NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.

Fig 2: Identifying Valve Body Cover And Eyebolt
Courtesy of HYUNDAI MOTOR CO.
Remove the plate and the detent spring (A) after removing the bolt.
Tightening torque:

24.5 ~ 35.3 N.m (2.5 ~ 3.6 kgf.m, 18.1 ~ 26.0 lb-ft)

Fig 3: Identifying Detent Spring
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt yea after disconnecting the solenoid valve connector (A) and the oil temperature sensor connector (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

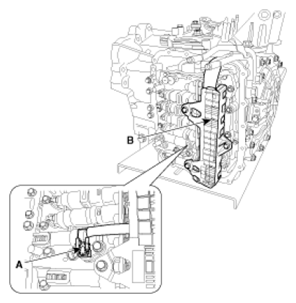

Fig 4: Identifying Oil Temperature Sensor Connector And Solenoid Valve Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Identifying Valve Body Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A) from the main wiring.
Remove the input & output speed sensor (B) after removing the bolts yea
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

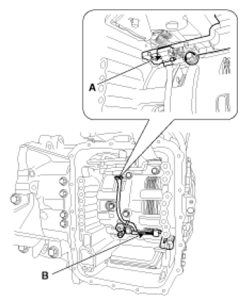

Fig 6: Identifying Input & Output Speed Sensor
Courtesy of HYUNDAI MOTOR CO.
