Repair Procedures: Removal

Remove the following items;
1. Engine cover (A) and the duct (C). (Refer to REMOVAL .
2. Air cleaner assembly (B). (Refer to REMOVAL .
3. Battery and battery tray (D). (Refer to REPAIR PROCEDURES .
Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 1: Identifying Automatic Transaxle Fluid Cooler Hose Clamp And Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the wiring bracket installation bolt (A-2ea).

Fig 2: Identifying Wiring Bracket Installation Bolt
Courtesy of HYUNDAI MOTOR CO.

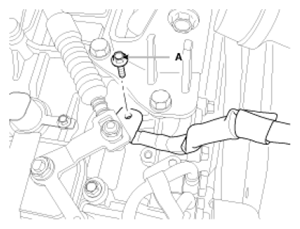

Remove the ground line after removing the bolt (A).

Fig 3: Identifying Ground Line Bolt
Courtesy of HYUNDAI MOTOR CO.
Disconnect the solenoid valve connector (B) and inhibitor switch connector (A).

Fig 4: Identifying Solenoid Valve Connector And Inhibitor Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable (C) after removing the nut (B) and the bolt (A-2ea).
Tightening torque:
1. 17.7 ~ 24.5 N.m (1.8 ~ 2.5 kgf.m, 13.0 ~ 18.1 lb-ft)
2. 9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)
Fig 5: Identifying Shift Cable, Nut And Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the CKP sensor (A).

Fig 6: Identifying CKP Sensor
Courtesy of HYUNDAI MOTOR CO.
Remove the automatic transaxle upper mounting bolt (A, B).
Tightening torque:
1. 63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
2. 32.4 ~ 49.0 N.m (3.3 ~ 5.0 kgf.m, 23.9 ~ 36.2 lb-ft)
Fig 7: Identifying Automatic Transaxle Upper Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

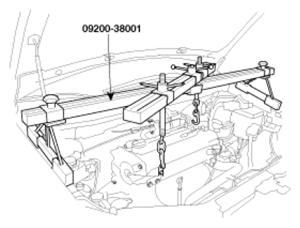

Using the SST(09200-38001), hold the engine and transaxle assembly safely.

Fig 8: Holding Engine And Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the automatic transaxle mounting support bracket bolt (A).
Tightening torque:

63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

Fig 9: Identifying Automatic Transaxle Mounting Support Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.

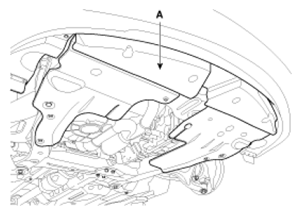

Remove the under cover (A).
Under cover installation bolt:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 10: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the following items;
1. Front wheels. (Refer to REPAIR PROCEDURES .
2. Sub frame assembly. (Refer to REMOVAL .
3. Drive shaft assembly from the automatic transaxle system. (Refer to REMOVAL .
4. Front muffler assembly. (Refer to MUFFLER .
Remove the side cover (A).
Remove the dust cover (A).
Remove the torque converter mounting bolt (A) (6ea) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)
Remove the bracket (A).

Fig 11: Identifying Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the start motor mounting bolt (A).
Tightening torque:

49.0 ~ 63.7N.m (5.0~6.5Kgf.m, 36.2 ~47.0 lb-ft)

Fig 12: Identifying Start Motor Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the automatic transaxle with a jack after removing the mounting bolt (A-4ea, B-1ea).
Tightening torque:
1. (B) 39.2 ~ 46.1 N.m (4.0 ~ 4.7 kgf.m, 28.9~34.0lb-ft)
2. (C) 78.5 ~98.1N.m (8.0~10.0 kgf.m, 57.9 ~72.3 lb-ft)
Fig 13: Identifying Automatic Transaxle Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
