Adjusting method for T/M control cable

Set room side lever and T/M side lever to "N" position.
Connect room side lever and shift cable.
Push cable to "F" direction shown to eliminate FREE PLAY.
Tighten adjusting nut (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

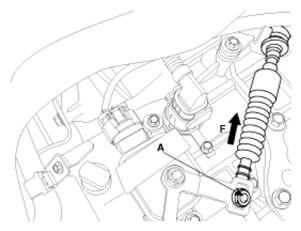

Fig 1: Pushing Cable
Courtesy of HYUNDAI MOTOR CO.
After adjusting according Check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
