Repair Procedures: Removal

Remove the knob (A).

Fig 1: Identifying Knob
Courtesy of HYUNDAI MOTOR CO.

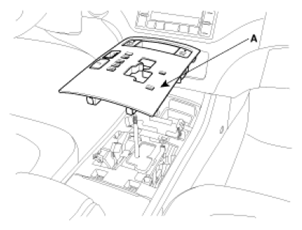

Remove the Indicator assembly (A).

Fig 2: Identifying Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the center console assembly. (Refer to "INTERIOR " in BD group.)

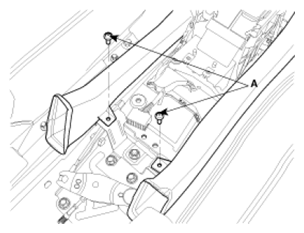

Remove the two screws (A) mounting floor air duct.

Fig 3: Identifying Mounting Floor Air Duct Screws
Courtesy of HYUNDAI MOTOR CO.

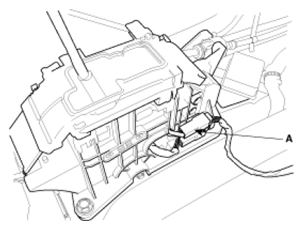

Shift lever assembly connector (A).

Fig 4: Identifying Shift Lever Assembly Connector
Courtesy of HYUNDAI MOTOR CO.

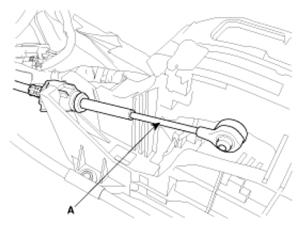

Remove the shift cable (A).

Fig 5: Identifying Shift Cable
Courtesy of HYUNDAI MOTOR CO.

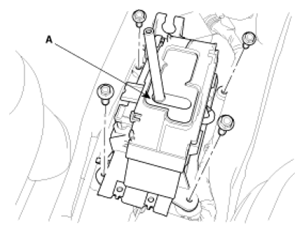

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 6: Identifying Shift Lever Assembly And Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 7: Identifying Retainer And Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the cable from the bracket at transaxle assembly side (Refer to "AUTOMATIC TRANSAXLE " in this group).
Remove the shift cable at cabin room.
