Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
1. TCM connector and terminal function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1. TCM connector and terminal function

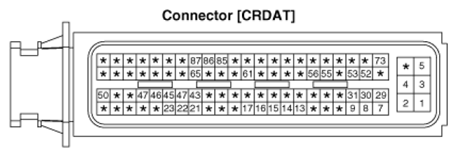

Fig 1: Identifying TCM Connector And Terminal
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
