Rear Power Window Switch Down

Check for continuity between the terminals.

1. There should be continuity between the No. 1 and No. 4 terminal when power and ground are connected to the No. 5 terminal and No. 6 terminal.
2. There should be no continuity between the No. 1 terminal and No. 4 terminal when power is disconnected.

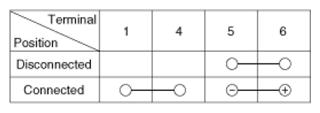

   Fig 1: Terminal Continuity Chart

   Courtesy of HYUNDAI MOTOR CO.
