Spark Test

  1. Remove the ignition coil connector (A).
    Fig 1: Locating Ignition Coil Connector
    G00509999Courtesy of HYUNDAI MOTOR CO.
    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Pulling Ignition Coil Connector Lock Pin And Push Clip
    G06804940Courtesy of HYUNDAI MOTOR CO.
  2. Remove the ignition coil (B).
  3. Using a spark plug socket, remove the spark plug.
  4. Install the spark plug to the ignition coil.
  5. Ground the spark plug to the engine.
    Fig 3: Grounding Spark Plug To Engine
    G06804941Courtesy of HYUNDAI MOTOR CO.
  6. Check if spark occurs while engine is being cranked.
    NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay (A) from the fuse box.
    Crank the engine for no more than 5 ~ 10 seconds.
    Fig 4: Locating Fuel Pump Relay
    G06804942Courtesy of HYUNDAI MOTOR CO.
  7. Inspect all the spark plugs.
  8. Using a spark plug socket, install the spark plug.
  9. Install the ignition coil.
  10. Reconnect the ignition coil connector.

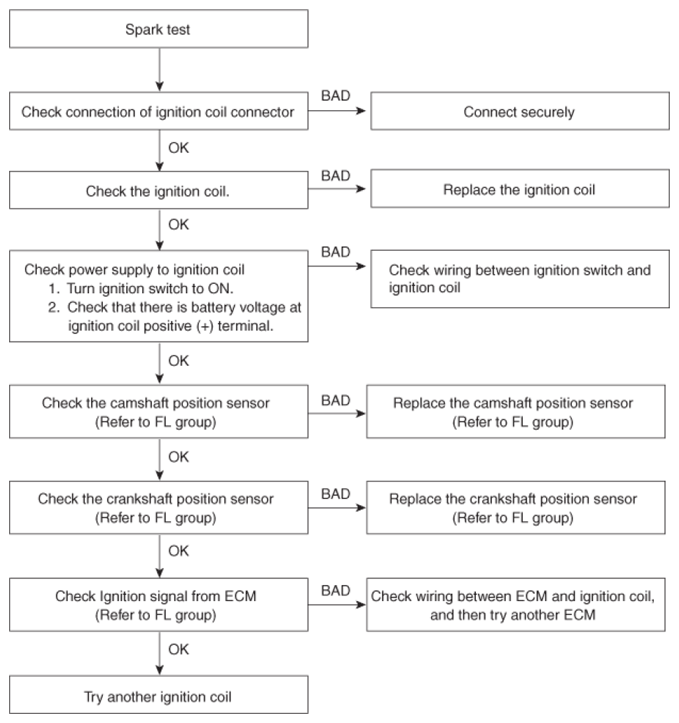

    Fig 5: Ignition Coil Connector Connection Flow Chart
    G06804943Courtesy of HYUNDAI MOTOR CO.
