Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad center garnish(A).

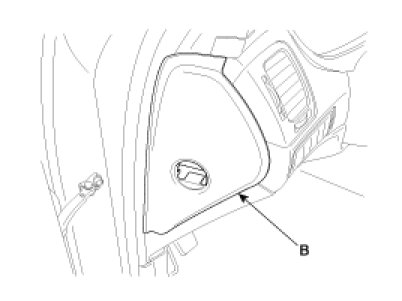

3. Remove the crash pad side cover(B).

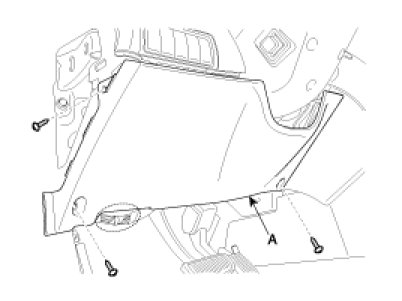

4. Loosening the screw then, remove the lower panel(A).




5. Loosen the screw. Remove the center facia panel (A) and then disconnect the connectors.

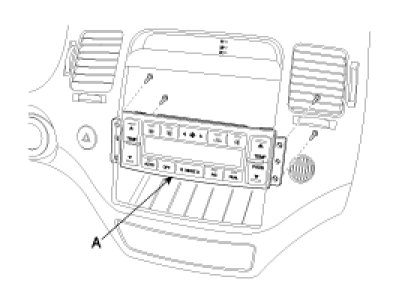

6. Remove the heater & A/C controller (A) after loosening 4 screws.




7. Installation is the reverse order of removal.
