Oscilloscope Patterns and Waveforms





Wave Form

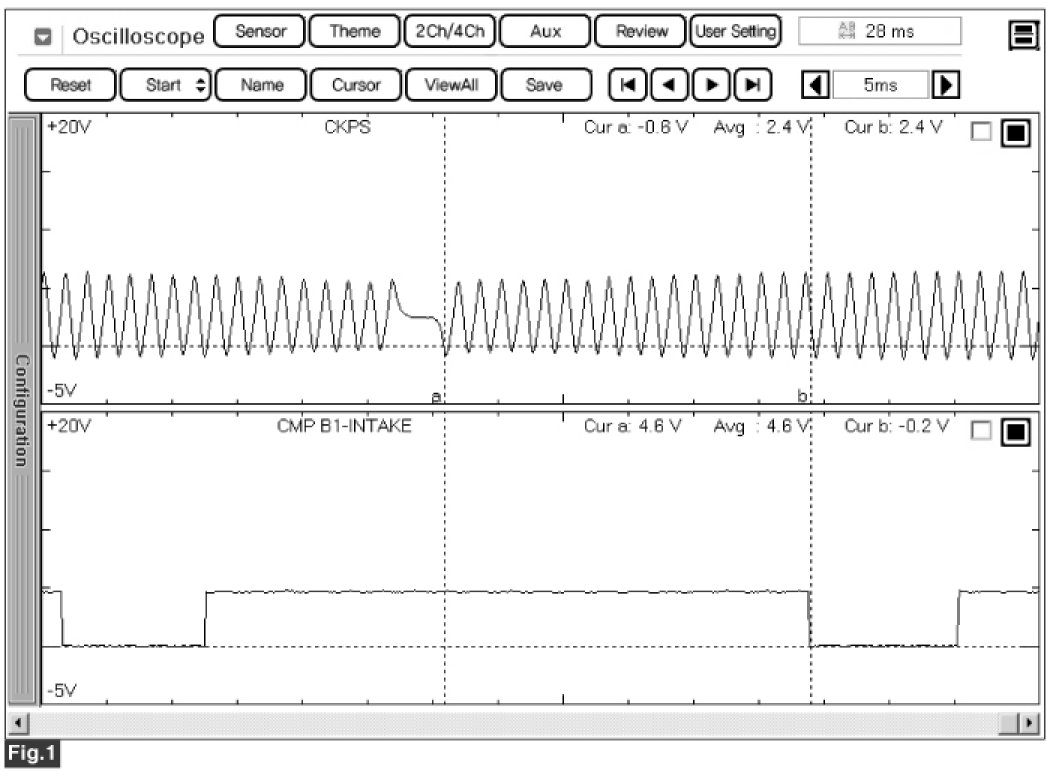

Fig 1) Normal waveform of CKPS & CMPS.

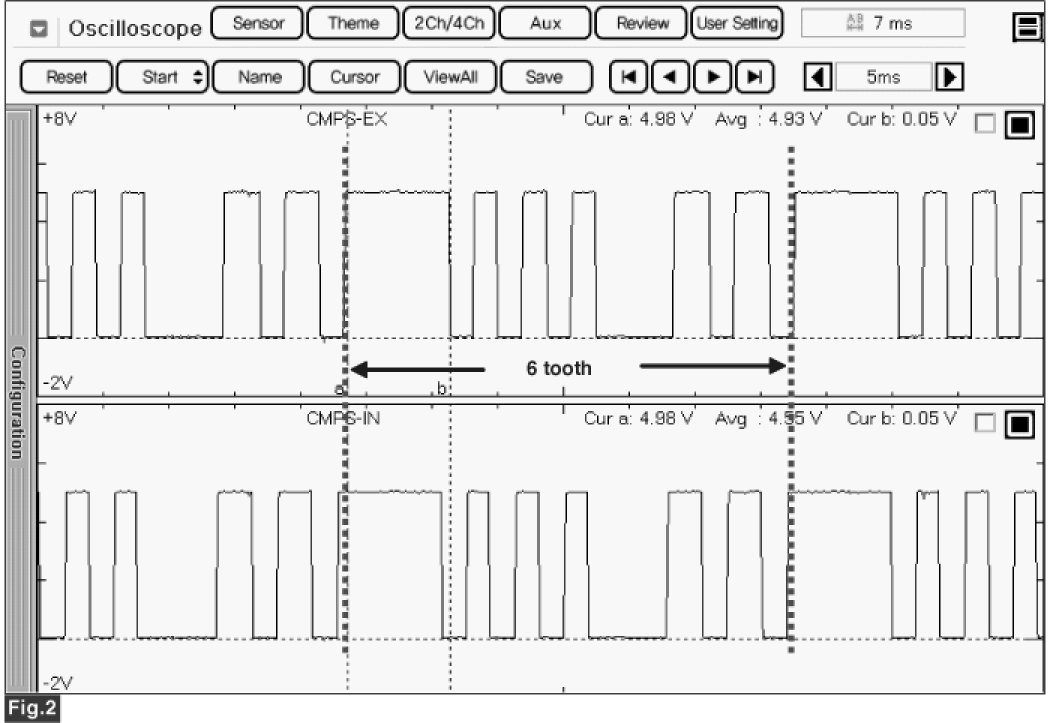

Fig 2) Normal waveform of CMPS.
