Transmission Position Sensor/Switch: Service and Repair

Removal

1. Set room side lever and T/M side lever to "N" position.
2. Remove the battery and the battery tray.
3. Remove the air cleaner assembly.

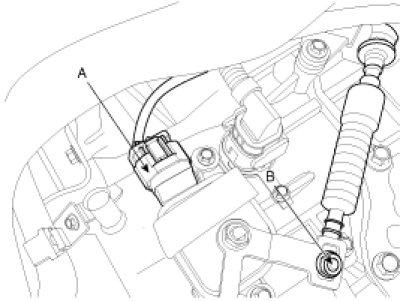

4. Remove the shift cable mounting nut (B).

Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

5. Disconnect the inhibitor switch connector (A).

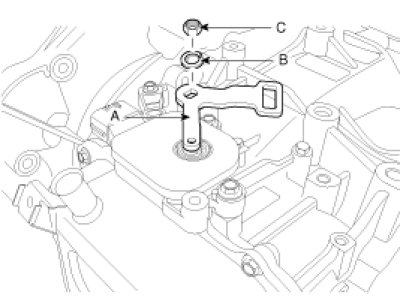

6. Remove the manual control lever (A) and the washer (B) after removing a nut (C).





CAUTION:
When installing, fix the manual control lever and the inhibitor switch with Ø5mm (0.1969in.) fixing jig.
And then tighten the inhibitor assembly mounting bolts.

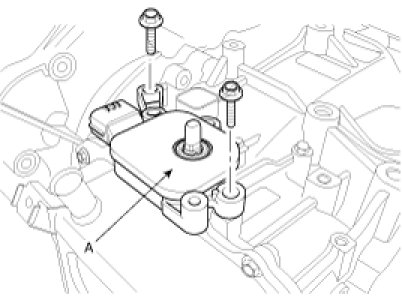

7. Remove the inhibitor assembly (A) after removing the bolts (2ea).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)





CAUTION:
When installing, tighten the inhibitor assembly mounting bolt lightly.

Installation

1. Installation is the reverse of removal.
