System Specifications

Specifications

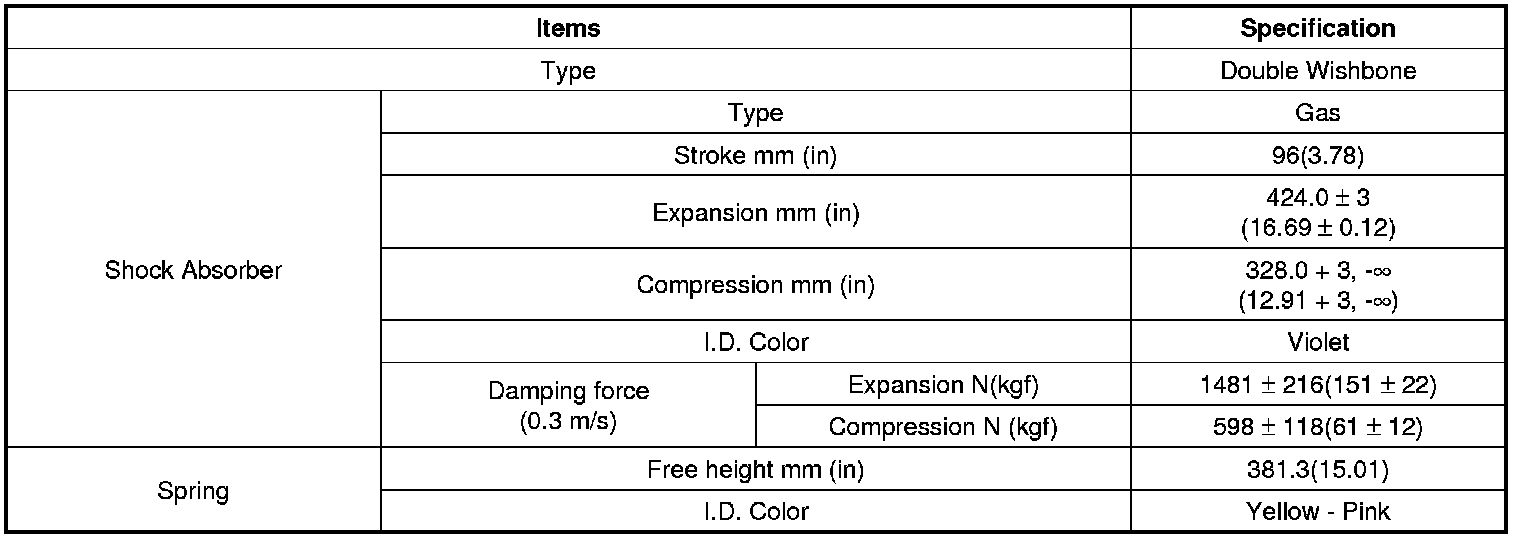

Front Suspension System

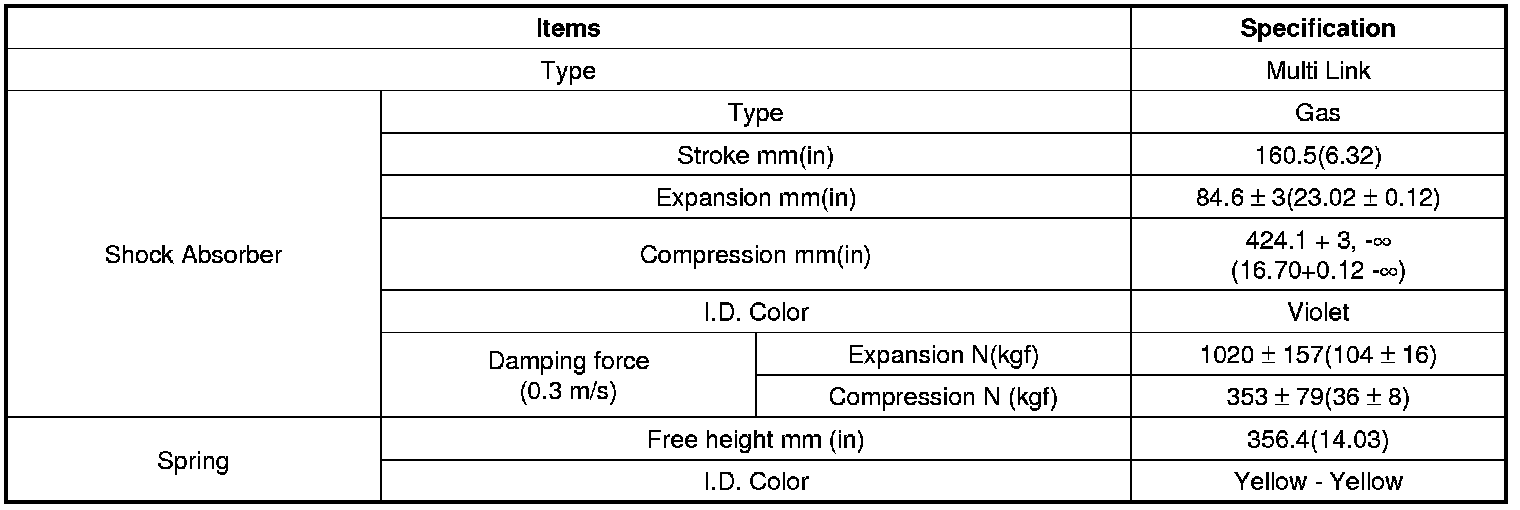

Rear Suspension System

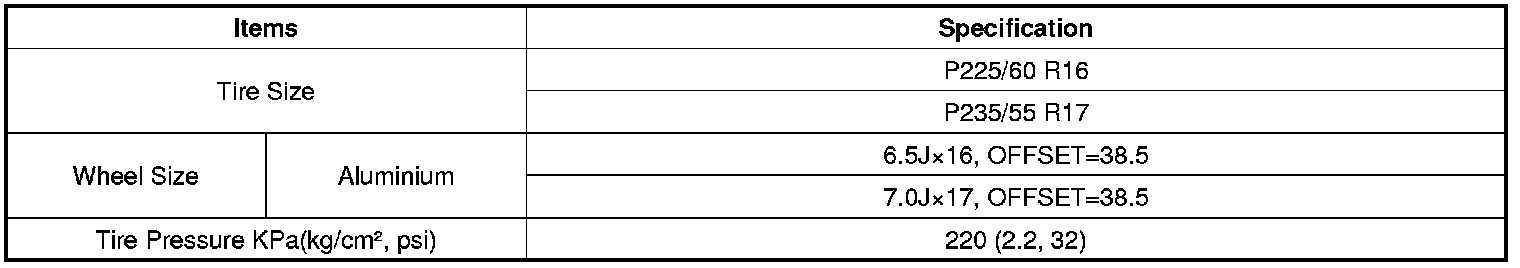

Wheels And Tires

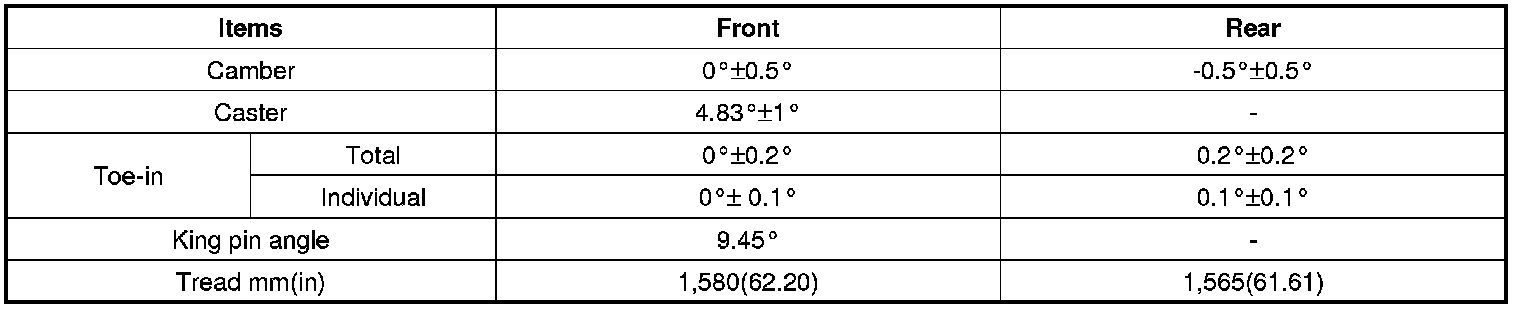

Wheel Alignment






Tightening Torques

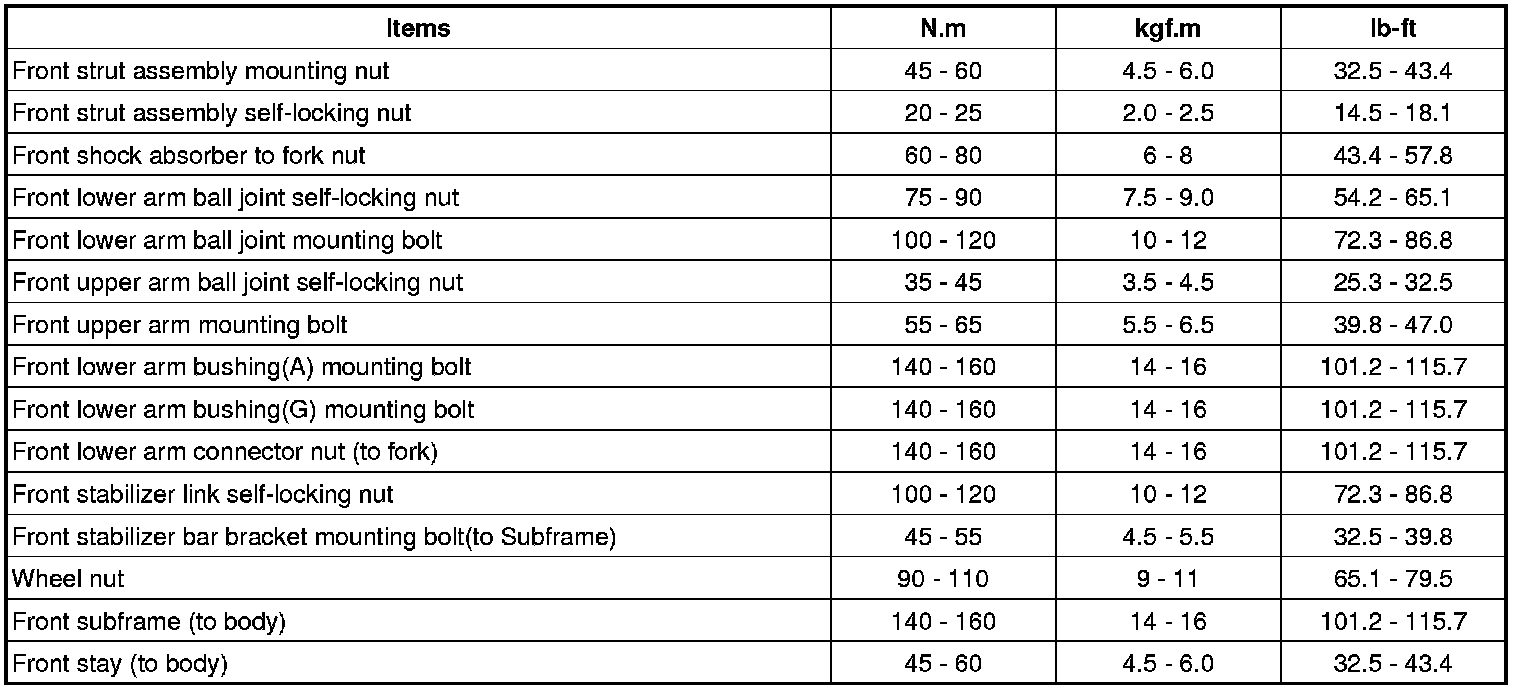

Front Suspension

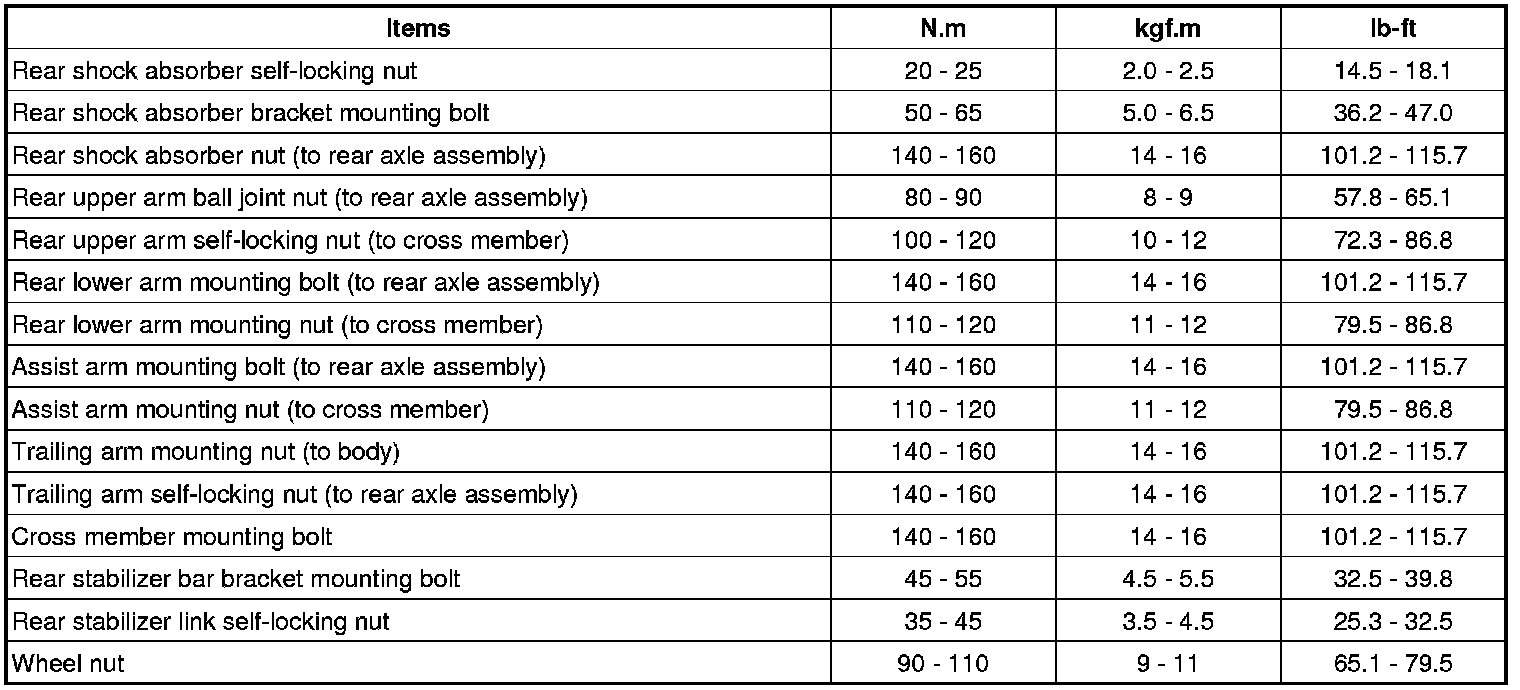

Rear Suspension






CAUTION:
Replace the self-locking nuts with new ones after removal.

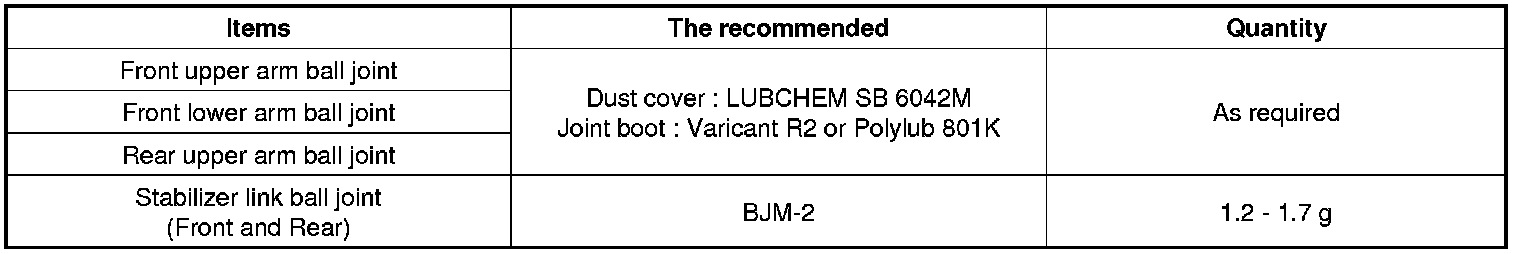

Lubricants
