System Specifications

Specifications





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

Specification (ABS)

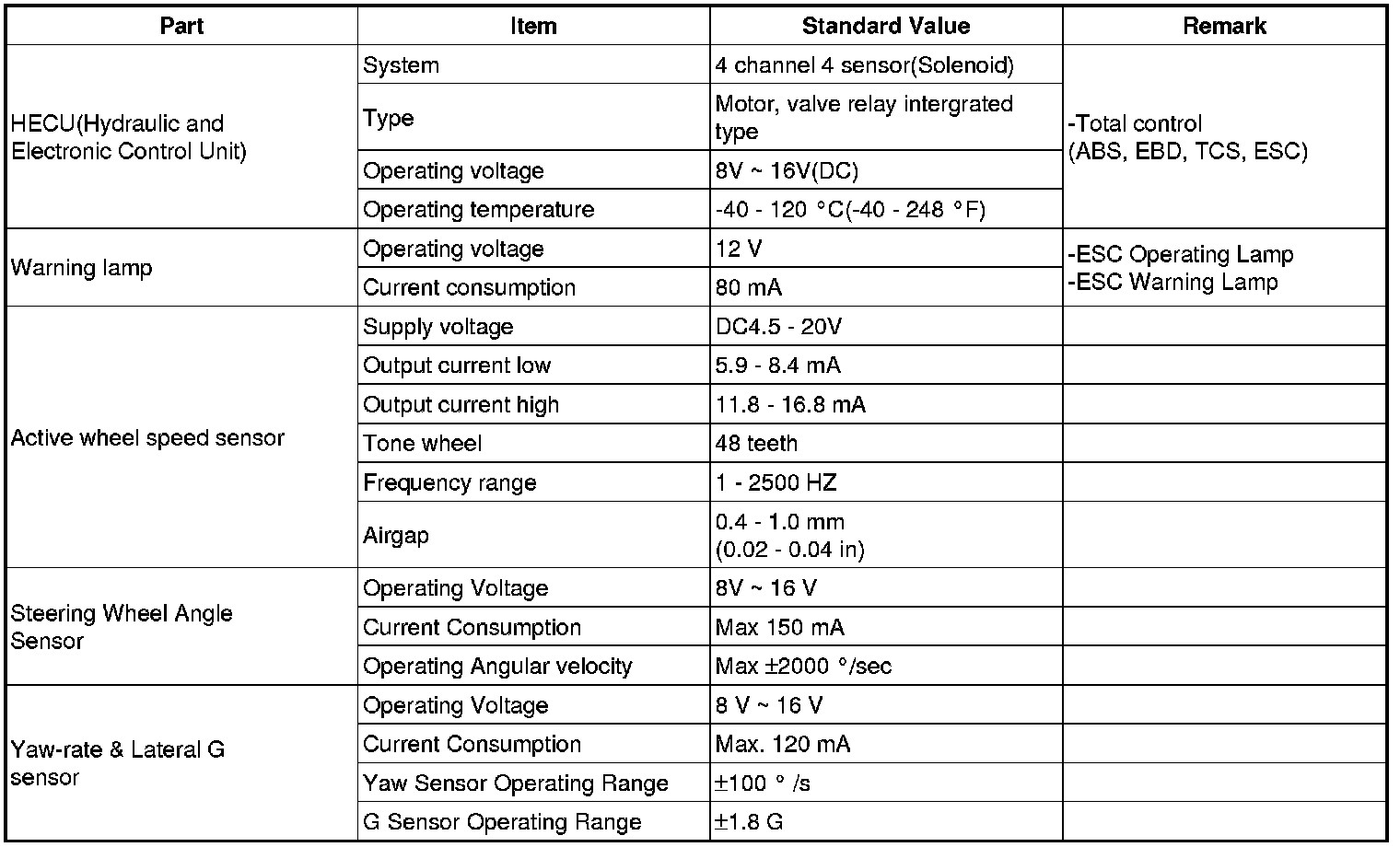

Specification(ESC)

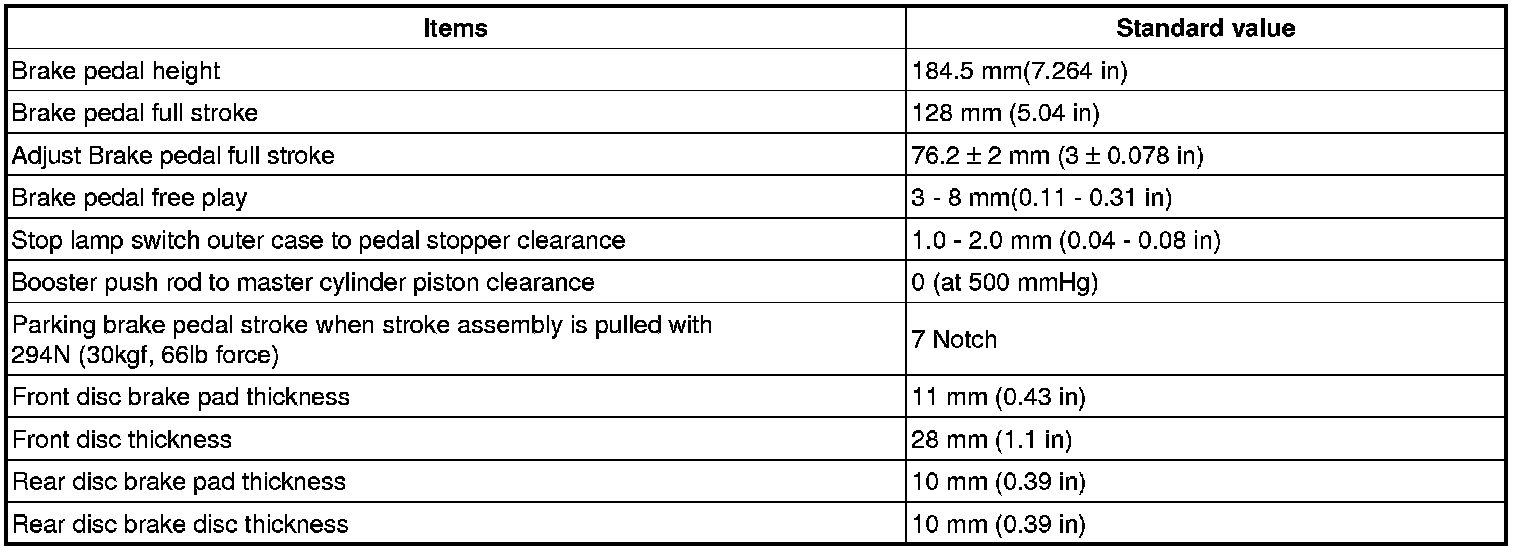

Service Standard

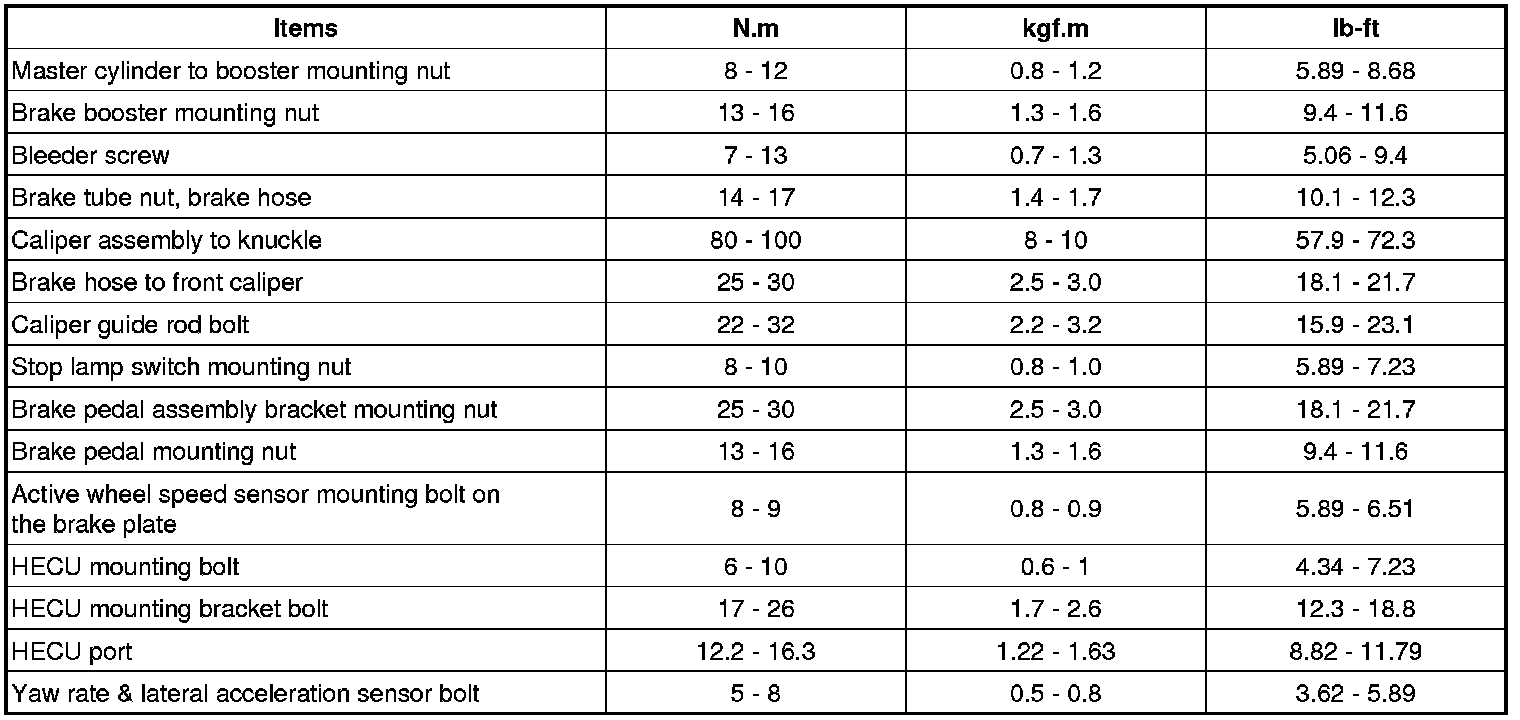

Tightening Torques
