Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim. (Refer to the FRONT DOOR )
  3. Disconnect the motor connector from the motor.

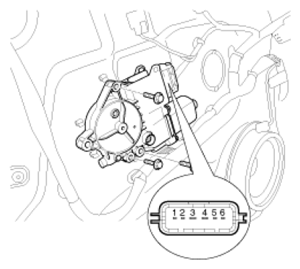

    Fig 1: Identifying Front Power Window Motor Connector
    G07312956Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

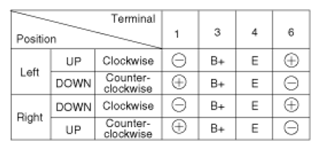

    Fig 2: Front Power Window Motor Connector Terminal Continuity Chart
    G07312957Courtesy of HYUNDAI MOTOR CO.
