Repair Procedures: Removal

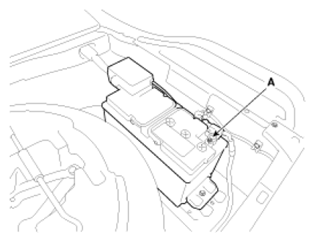

Disconnect the negative cable (A) from the battery.
Tightening torque:

4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)

Fig 1: Identifying Negative Cable Of Battery
Courtesy of HYUNDAI MOTOR CO.

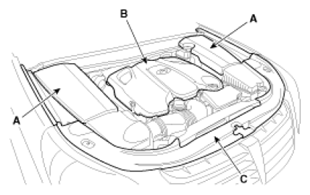

Remove the engine room cover (A), engine cover (B) and radiator grill upper cover (C).

Fig 2: Identifying Engine Room Cover, Engine Cover And Radiator Grill Upper Cover
Courtesy of HYUNDAI MOTOR CO.

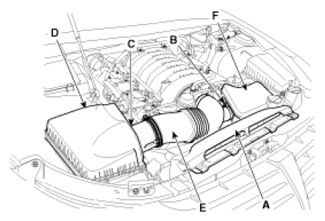

Remove the air cleaner assembly.
1. Remove the air duct (A).
2. Disconnect the air flow sensor(AFS) connector (C).
3. Disconnect the breather hose (B).
4. Remove the resonator (F), the intake air hose (E) and air cleaner assembly (D).
Tightening torque:

Hose clamp bolt:

2.9 ~ 4.9N.m (0.3 ~ 0.5kgf.m, 2.2 ~ 3.6lb-ft)

Air cleaner assembly bolts:

7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

Fig 3: Identifying Air Duct, Air Flow Sensor Connector, Air Cleaner Assembly, Breather Hose And Resonator
Courtesy of HYUNDAI MOTOR CO.

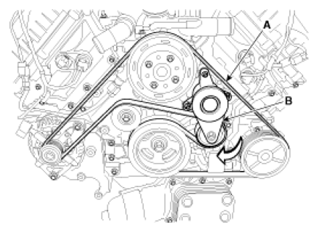

Using the wrench turn the tensioner (B) counterclockwise and loosen. Then remove the drive belt (A).

Fig 4: Turning Tensioner Counterclockwise Using Wrench
Courtesy of HYUNDAI MOTOR CO.
Remove the oil level gauge (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Identifying Oil Level Gauge
Courtesy of HYUNDAI MOTOR CO.
Remove the alternator.

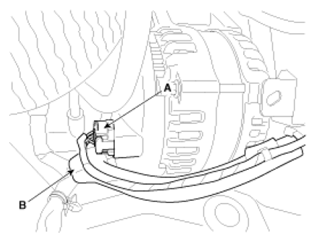

1. Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.

  Fig 6: Identifying Alternator Connector And Cable
  Courtesy of HYUNDAI MOTOR CO.

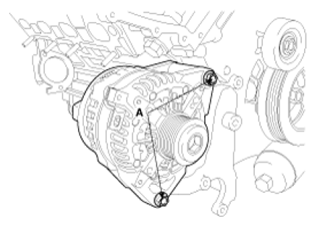

2. Loosen the alternator mounting bolts (A) and then remove alternator from the vehicle.
  Tightening torque:

  29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

  Fig 7: Identifying Alternator Mounting Bolts
  Courtesy of HYUNDAI MOTOR CO.
Installation is reverse order of removal.
