Component Location

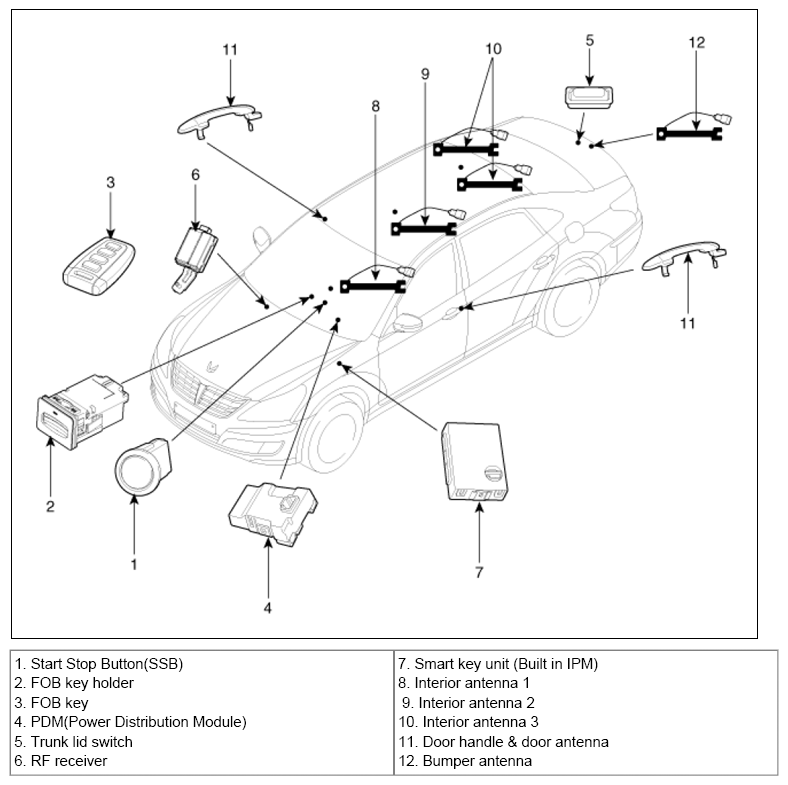

Fig 1: Identifying Button Engine Start System Component Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
