PDM Diagnosis With GDS

1. It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and "IPM" menu if you want to check PDM.

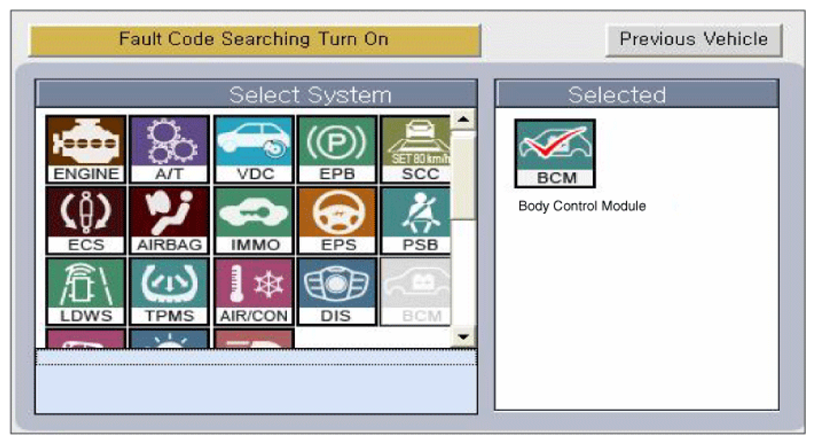

   Fig 1: Screen Display - PDM Diagnosis

   Courtesy of HYUNDAI MOTOR CO.
3. Select "PDM" in the menu.
4. Select Input/output monitoring", if you want to check current data of PDM. It provides the input/output status of each module.

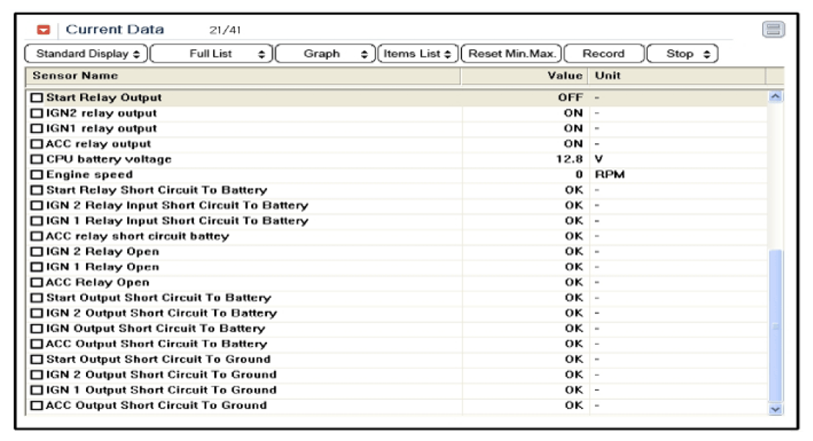

   Fig 2: Screen Display - Select Input/output Monitoring

   Courtesy of HYUNDAI MOTOR CO.
5. If you want to check PDM data operation forcefully, select "Actuation test".

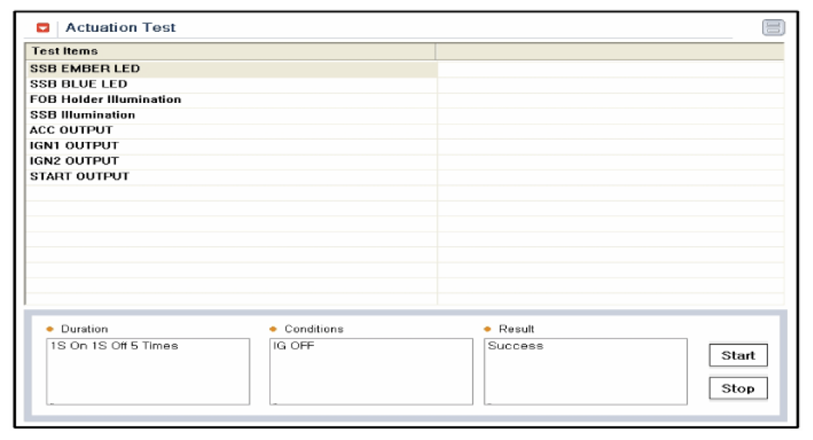

   Fig 3: Screen Display - Actuation Test

   Courtesy of HYUNDAI MOTOR CO.

Input/output Current Data

Actuation Test
