Repair Procedures: Removal

  1. Disconnect the negative(-) battery terminal.
  2. Remove the center fascia panel (A). (Refer to "CRASH PAD ")
    Fig 1: Identifying Center Fascia Panel
    G07313280Courtesy of HYUNDAI MOTOR CO.
  3. Remove the DIS head unit (A). (Refer to "DIS SYSTEM ")

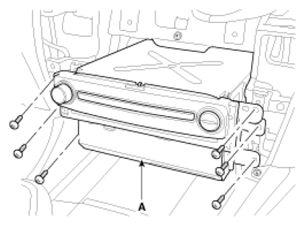

    Fig 2: Identifying DIS Head Unit
    G07313281Courtesy of HYUNDAI MOTOR CO.
  4. Remove the crash pad lower panel (A).

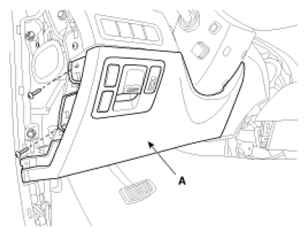

    Fig 3: Identifying Crash Pad Lower Panel
    G07313282Courtesy of HYUNDAI MOTOR CO.
  5. Remove the power distribution module(A) after loosening bolt and nut.
    Fig 4: Identifying Power Distribution Module
    G07313283Courtesy of HYUNDAI MOTOR CO.
