Components and Components Location: Components

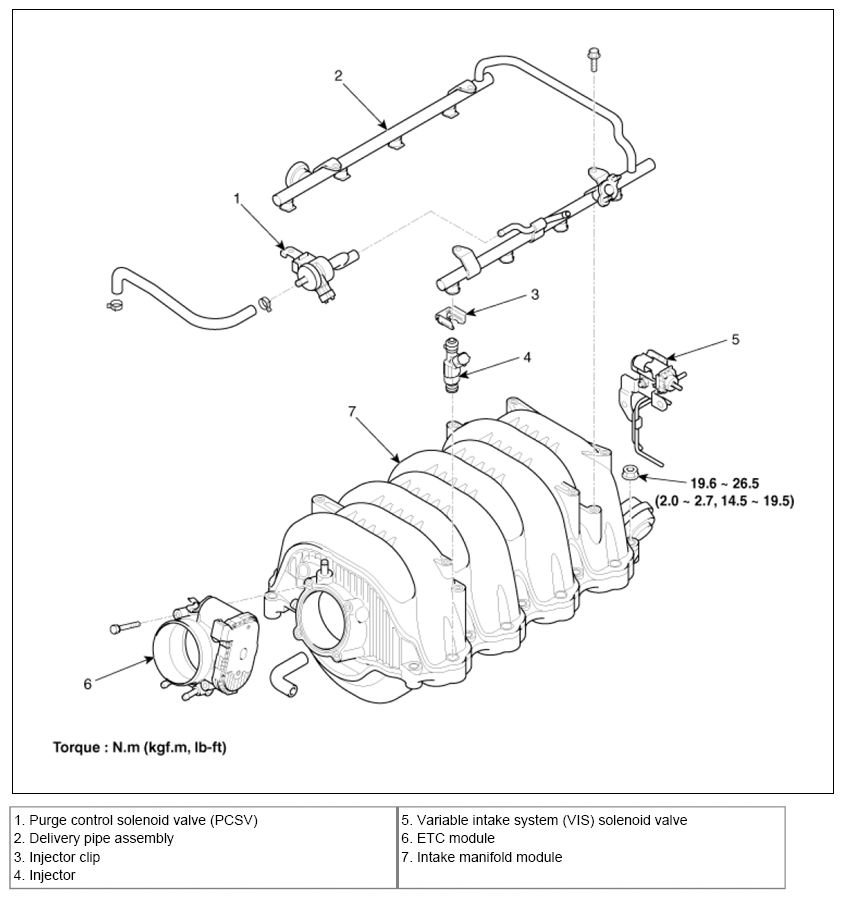

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G07308956Courtesy of HYUNDAI MOTOR CO.
