Repair Procedures: Installation

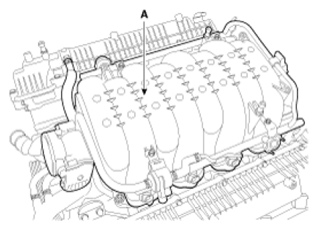

  1. Install the intake manifold module (A), and then tighten the nuts as following method.

    Tightening torque:

    1st step:

    4.9 ~ 7.8N.m (0.5 ~ 0.8kgf.m, 3.6 ~ 5.8lb-ft)

    2nd step:

    19.6 ~ 26.5N.m (2.0 ~ 2.7kgf.m, 14.5 ~ 19.5lb-ft)

    Fig 1: Identifying Intake Manifold Module
    G07308967Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Intake Manifold Module Tightening Sequence
    G07308968Courtesy of HYUNDAI MOTOR CO.

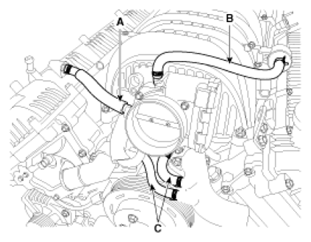

  2. Connect the PCV hose (A), the PCSV hose (B) and the water hoses (C) to the intake manifold module and the throttle body.
    Fig 3: Identifying PCV Hose, PCSV Hose And Water Hoses
    G07308969Courtesy of HYUNDAI MOTOR CO.
    CAUTION: The end of the hose with a white mark should be reconnected to the head cover.

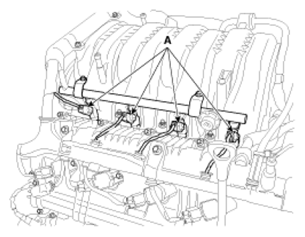

  3. Reconnect the injector connectors (A).
    Fig 4: Identifying Injector Connectors
    G07308970Courtesy of HYUNDAI MOTOR CO.

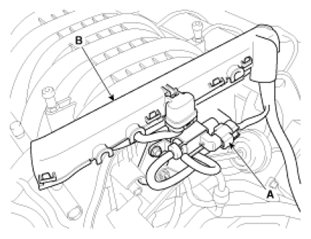

  4. Connect the variable intake system (VIS) solenoid valve connector (A) and the wiring harness protector (B).
    Fig 5: Identifying Variable Intake System Solenoid Valve Connector And Wiring Harness Protector
    G07308971Courtesy of HYUNDAI MOTOR CO.

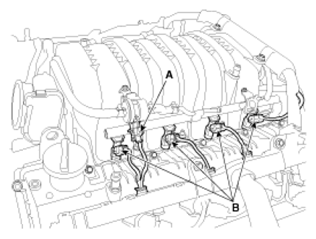

  5. Connect the purge control solenoid valve (PCSV) connector (A) and the injector connectors (B).
    Fig 6: Identifying Purge Control Solenoid Valve Connector And Injector Connectors
    G07308972Courtesy of HYUNDAI MOTOR CO.

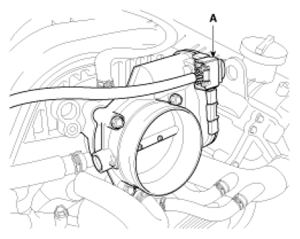

  6. Connect the ETC module connector (A).
    Fig 7: Identifying ETC Module Connector
    G07308973Courtesy of HYUNDAI MOTOR CO.

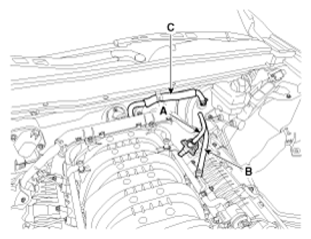

  7. Connect the fuel hose (A), the purge control solenoid valve (PCSV) hose (B) and the brake booster vacuum hose (C).
    Fig 8: Identifying Fuel Hose, Purge Control Solenoid Valve Hose And Brake Booster Vacuum Hose
    G07308974Courtesy of HYUNDAI MOTOR CO.
  8. Install the air cleaner assembly.
    1. Install the resonator (F), the intake air hose (E) and air cleaner assembly (D).
    2. Reconnect the breather hose (B).
    3. Reconnect the air flow sensor (AFS) connector (C).
    4. Install the air duct (A).

      Tightening torque

      Hose clamp bolt: 2.9 ~ 4.9N.m (0.3 ~ 0.5kgf.m, 2.2 ~ 3.6lb-ft)

      Air cleaner assembly bolts: 7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

      Fig 9: Identifying Air Duct, Air Flow Sensor Connector, Breather Hose And Resonator
      G07308975Courtesy of HYUNDAI MOTOR CO.

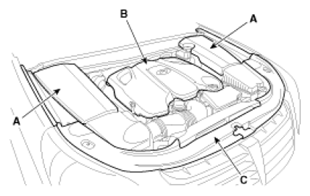

  9. Install the engine room cover (A), the engine cover (B) and the radiator grill upper cover (C).
    Fig 10: Identifying Engine Room Cover, Engine Cover And Radiator Grill Upper Cover
    G07308976Courtesy of HYUNDAI MOTOR CO.
  10. Reconnect the battery negative terminal (A).

    Tightening torque:  4.0~6.0N.m (0.4~0.6kgf.m, 3.0~4.4lb-ft)
