Repair Procedures: Removal

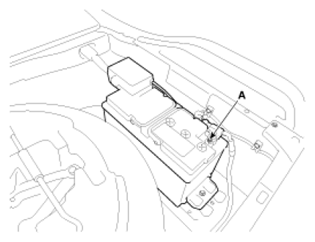

Disconnect the negative terminal (A) from the battery.

Fig 1: Identifying Battery Negative Terminal
Courtesy of HYUNDAI MOTOR CO.

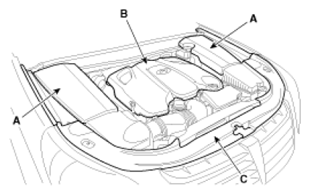

Remove the engine room cover (A), engine cover (B) and radiator grill upper cover (C).

Fig 2: Identifying Engine Room Cover, Engine Cover And Radiator Grill Upper Cover
Courtesy of HYUNDAI MOTOR CO.

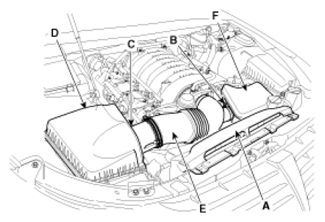

Remove the air cleaner assembly.
1. Remove the air duct (A).
2. Disconnect the air flow sensor (AFS) connector (C).
3. Disconnect the breather hose (B).
4. Remove the resonator (F), the intake air hose (E) and air cleaner assembly (D).

  Fig 3: Identifying Air Duct, Air Flow Sensor Connector, Breather Hose And Resonator
  Courtesy of HYUNDAI MOTOR CO.

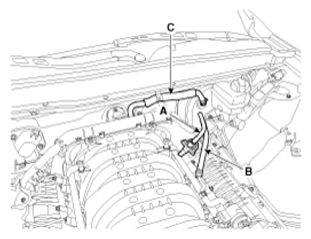

Remove the fuel hose (A), the purge control solenoid valve (PCSV) hose (B) and the brake booster vacuum hose (C).

Fig 4: Identifying Fuel Hose, Purge Control Solenoid Valve Hose And Brake Booster Vacuum Hose
Courtesy of HYUNDAI MOTOR CO.

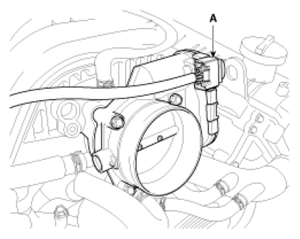

Disconnect the ETC module connector (A).

Fig 5: Identifying ETC Module Connector
Courtesy of HYUNDAI MOTOR CO.

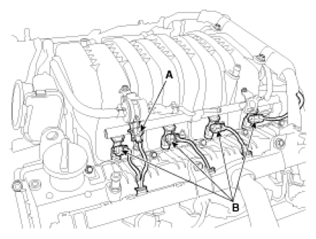

Disconnect the purge control solenoid valve (PCSV) connector (A) and the injector connectors (B).

Fig 6: Identifying Purge Control Solenoid Valve Connector And Injector Connectors
Courtesy of HYUNDAI MOTOR CO.

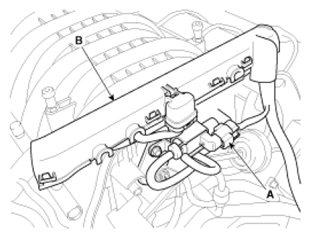

Disconnect the variable intake system (VIS) solenoid valve connector (A) and the wiring harness protector (B).

Fig 7: Identifying Variable Intake System Solenoid Valve Connector And Wiring Harness Protector
Courtesy of HYUNDAI MOTOR CO.

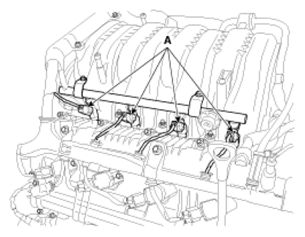

Disconnect the injector connectors (A).

Fig 8: Identifying Injector Connectors
Courtesy of HYUNDAI MOTOR CO.

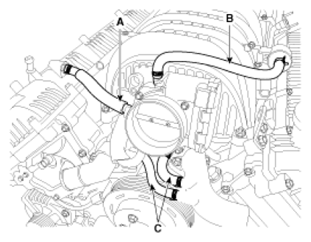

Disconnect the PCV hose (A), the PCSV hose (B) and the water hoses (C) from the intake manifold module and the throttle body.

Fig 9: Identifying PCV Hose, PCSV Hose And Water Hoses
Courtesy of HYUNDAI MOTOR CO.

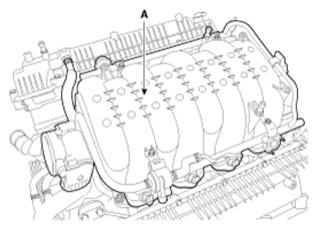

Remove the intake manifold module (A).

Fig 10: Identifying Intake Manifold Module
Courtesy of HYUNDAI MOTOR CO.
