Repair Procedures: Removal
- Remove the sub frame. (Refer to )
- Drain engine oil.
- Remove the oil filler cap.

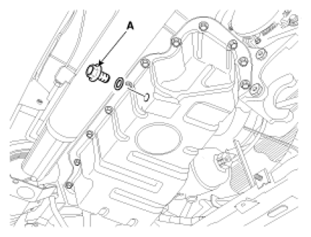

- After lifting the car, remove the oil drain plug and drain oil into a container.

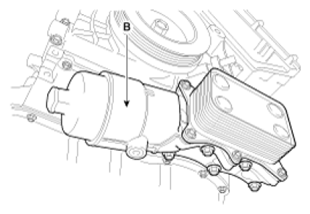

- Remove the oil filter & cooler assembly (B).
- Remove the lower oil pan(A).
Insert the blade of SST(09215-3C000) between the upper oil pan and the lower oil pan. Cut off applied sealer and remove the lower oil pan.
Courtesy of HYUNDAI MOTOR CO.
NOTE:- Insert the SST between the lower oil pan and the upper oil pan by tapping it with a plastic hammer in the direction of (1) arrow.
- After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the lower oil pan, remove it from the lower oil pan.
- Do not use the SST as a prybar. Hold the tool in position (on the gasket line) and tap in with a light hammer.
- Be careful not to damage the contact surfaces of upper oil pan and lower oil pan.
- Remove the upper oil pan (A).

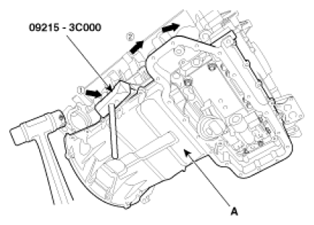

Insert the blade of SST(09215-3C000) between the upper oil pan and the cylinder block. Cut off applied sealer and remove upper oil pan.
Courtesy of HYUNDAI MOTOR CO.
NOTE:- Insert the SST between the upper oil pan and the cylinder block by tapping it with a plastic hammer in the direction of (1) arrow.
- After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the upper oil pan, remove it from the upper oil pan.
- Do not use the SST as a prybar. Hold the tool in position (on the gasket line) and tap in with a light hammer.
- Be careful not to damage the contact surfaces of Upper oil pan and cylinder block.
- Remove the oil pump assembly (A) after remove the oil pump sprocket (B).
