Circuit Diagram

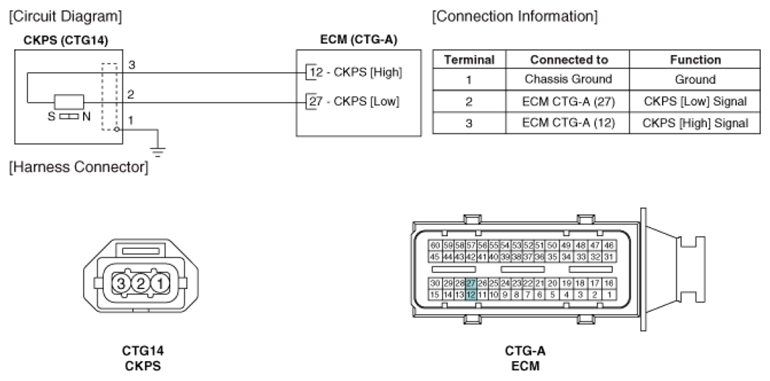

Fig 1: Crankshaft Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
