Wave Form

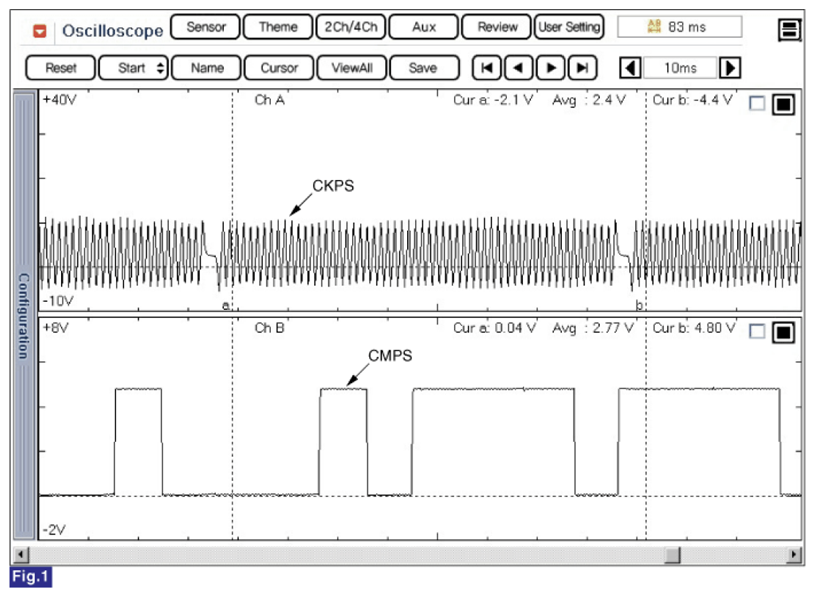

Fig 1: Crankshaft Position Sensor Waveform

Courtesy of HYUNDAI MOTOR CO.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
