Repair Procedures: Removal
WARNING:
- DON'T remove the camshaft position sensor during engine running or right after engine stops, or a scald by the flowed out engine oil may occur.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

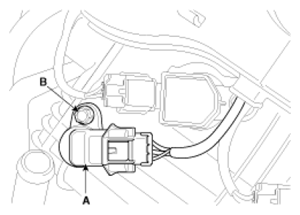

- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.
[Bank 1/Intake]
Courtesy of HYUNDAI MOTOR CO.
[Bank 1/Exhaust]
Courtesy of HYUNDAI MOTOR CO.
[Bank 2/Intake]
Courtesy of HYUNDAI MOTOR CO.
[Bank 2/Exhaust]
