Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the accelerator pedal in the direction of "Remove Direction" in the figure after removing the installation bolt (B).
    Fig 1: Identifying Accelerator Position Sensor Connector And Installation Bolt
    G07311601Courtesy of HYUNDAI MOTOR CO.

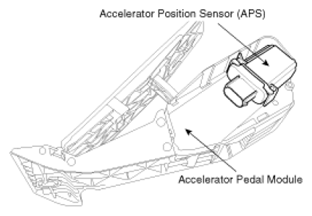

    Fig 2: Identifying Accelerator Position Sensor (APS) And Accelerator Pedal Module
    G07311602Courtesy of HYUNDAI MOTOR CO.
