Repair Procedures: Removal

  1. Disconnect the fuel filler hose (A) and the leveling hose (B).

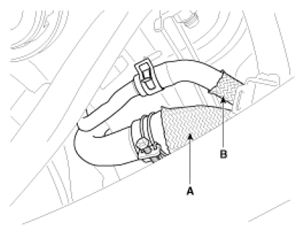

    Fig 1: Identifying Fuel Filler Hose And Leveling Hose
    G07311597Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the vapor hose quick-connector (A) after removing the trunk luggage trim.
    Fig 2: Identifying Vapor Hose Quick-Connector
    G07311598Courtesy of HYUNDAI MOTOR CO.
  3. Remove the rear-LH wheel, tire, and the inner wheel house.
  4. Remove the filler-neck assembly from the vehicle after removing the vapor hose mounting bolts (A) and the bracket mounting nuts (B).
    Fig 3: Identifying Vapor Hose Mounting Bolts And Bracket Mounting Nuts
    G07311599Courtesy of HYUNDAI MOTOR CO.

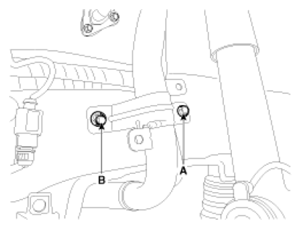

    Fig 4: Identifying Vapor Hose Mounting Bolt And Bracket Mounting Nut
    G07311600Courtesy of HYUNDAI MOTOR CO.
