Repair Procedures: Removal

Preparation
1. Remove the rear seat cushion (Refer to REAR SEAT in BD group).

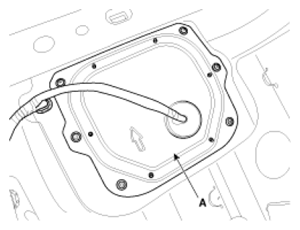

2. Remove the service cover of the fuel pump (A).

  Fig 1: Identifying Fuel Pump
  Courtesy of HYUNDAI MOTOR CO.
3. Disconnect the fuel pump connector (A).

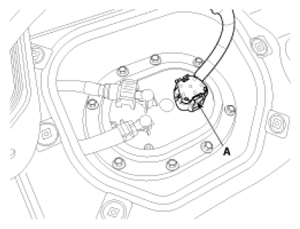

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Idle the engine and wait until fuel in feed line is exhausted.
5. After engine stops, turn the ignition switch OFF.
Disconnect the fuel feed tube quick-connector (A).

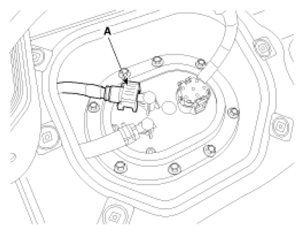

Fig 3: Identifying Fuel Feed Tube Quick-Connector
Courtesy of HYUNDAI MOTOR CO.

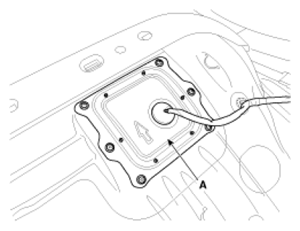

Remove the service cover of the sub fuel sender (A).

Fig 4: Identifying Sub Fuel Sender
Courtesy of HYUNDAI MOTOR CO.
Disconnect the sub fuel sender connector (A).

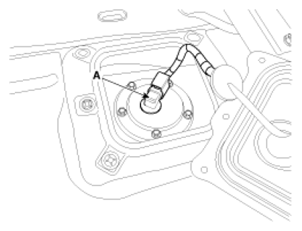

Fig 5: Identifying Sub Fuel Sender Connector
Courtesy of HYUNDAI MOTOR CO.
Lift the vehicle.
Remove the center muffler assembly (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).
Remove the propeller shaft (Refer to "PROPELLER SHAFT ASSEMBLY " in DS group).
Remove the under cover (A).

Fig 6: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Support the fuel tank with a jack.

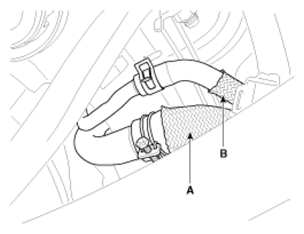

Disconnect the fuel filler hose (A) and the leveling hose (B).

Fig 7: Identifying Fuel Filler Hose And Leveling Hose
Courtesy of HYUNDAI MOTOR CO.

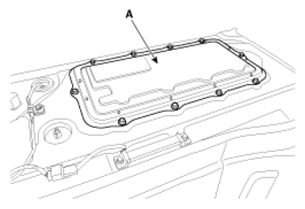

Remove the service cover of the canister (A) in trunk room.

Fig 8: Identifying Canister In Trunk Room
Courtesy of HYUNDAI MOTOR CO.
Disconnect the vapor tube quick-connector (A).

Fig 9: Identifying Vapor Tube Quick-Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the fuel tank (B) from the vehicle after removing the mounting nuts (A).

Fig 10: Identifying Fuel Tank And Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.
