Procedure Of ATF Level Inspection

Park the vehicle on a level surface and set the parking brake.
Shift the shift lever to "P" range.
Start the engine.
Shift through all ranges (P-R-N-D-3). Stay in each range for more than 3 seconds.
Then return to "P".

NOTE: Use the sport mode to shift to "3".
Wait until ATF temperature has reached at 30~35°C(86~95°F).
CAUTION: Do not raise ATF temperature by "Stall test"
Using a TORX wrench 8.0mm(0.3510in.), remove the filler plug (A).

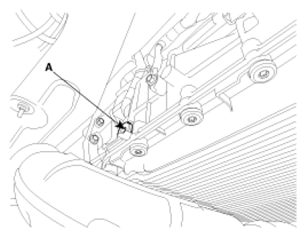

Fig 1: Identifying Filler Plug
Courtesy of HYUNDAI MOTOR CO.
Check for ATF flow from the overflow hole. Add ATF as needed until fluid flows from the overflow hole.
Specified ATF: Shell M-1375.4
Check that the ATF flows out of the overflow hole at 30~50°C(86~122°F).
CAUTION: Be careful not to exceed 50°C(122°F) of the oil temperature.
Using a TORX wrench, install the filler plug.
Tightening torque: 34.3 N.m(3.5 kgf.m, 25.3lb-ft)
