Repair procedures: Installation

Insert the shift cable assembly and place the rubber plug on the floor.
Install the shift lever assembly (A) by tightening the four bolts.
Tightening torque:

8.8~13.7 N.m(0.9~1.4 kgf.m, 6.5~10.1 lb-ft)

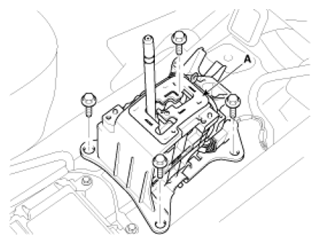

Fig 1: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable assembly (B) and insert the clip (A).
CAUTION: Place the waving shape end of the shift cable upward.

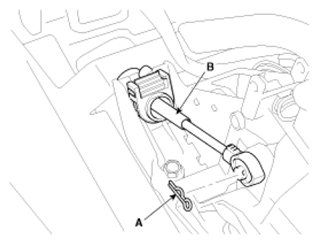

Fig 2: Identifying Shift Cable Assembly And Clip
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable assembly to the transmission (refer to )
CAUTION: Check that the shift cable is installed properly referring to .
Connect the wire (A) for the airbag assembly.

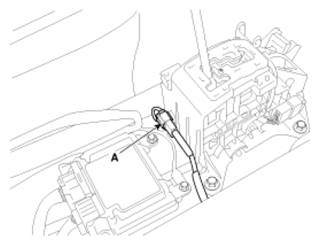

Fig 3: Identifying Airbag Assembly Wire
Courtesy of HYUNDAI MOTOR CO.
Connect the sport mode connector (A).

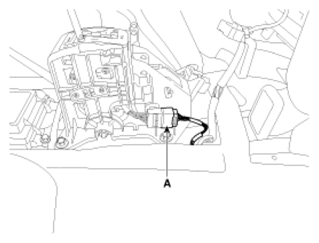

Fig 4: Identifying Sport Mode Connector
Courtesy of HYUNDAI MOTOR CO.
Install the center console. (refer to )
Insert the shift lever knob (A) with the specified force.
Specification:

2.2~3.6 N (22~36 kgf, 48.5~79.4 lb)

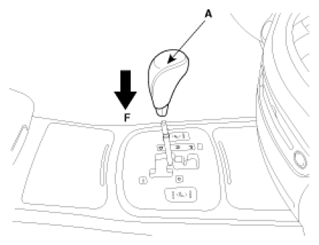

Fig 5: Inserting Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
