Repair procedures: Removal

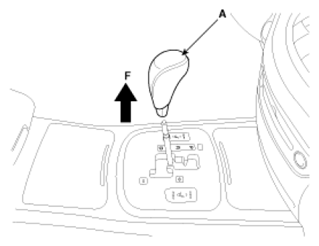

Pull the shift lever knob (A) upward to remove.

Fig 1: Pulling Shift Lever Knob Upward
Courtesy of HYUNDAI MOTOR CO.
Remove the center console. (refer to )

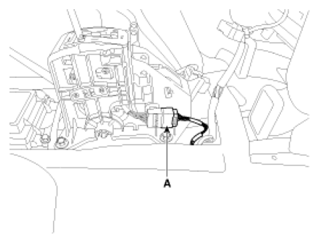

Disconnect the sport mode connector (A).

Fig 2: Identifying Sport Mode Connector
Courtesy of HYUNDAI MOTOR CO.

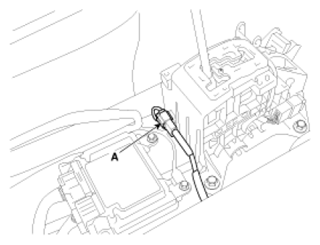

Disconnect the wire (A) for the airbag assembly.

Fig 3: Identifying Airbag Assembly Wire
Courtesy of HYUNDAI MOTOR CO.

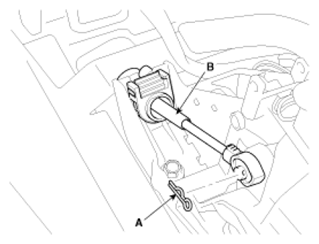

Take off the clip (A) and remove the shift cable assembly (B).

Fig 4: Identifying Clip And Shift Cable Assembly
Courtesy of HYUNDAI MOTOR CO.

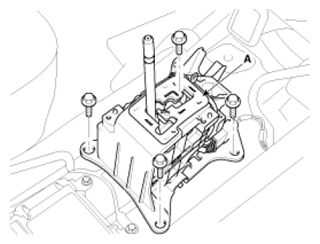

Remove the shift lever assembly (A) by removing the four bolts.

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the shift cable assembly from the transmission (refer to )
Pull the rubber plug on the floor and pull out the shift cable assembly.
