Relax Module

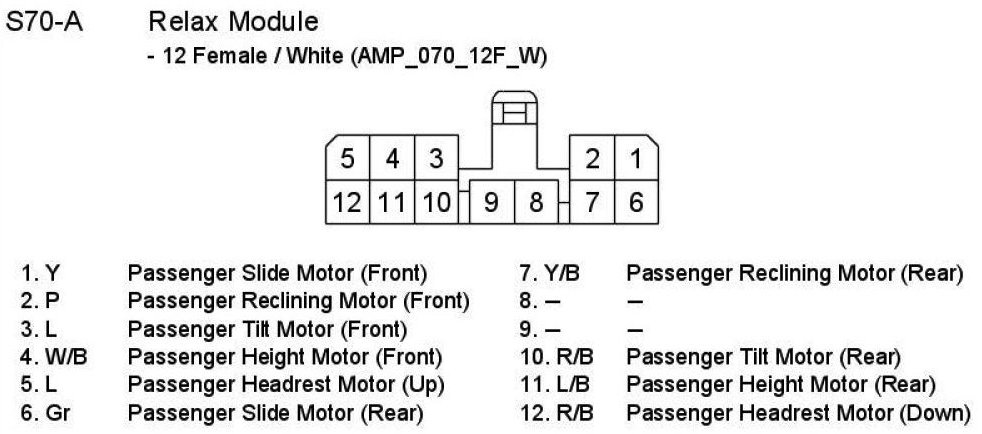

S70-A Relax Module:

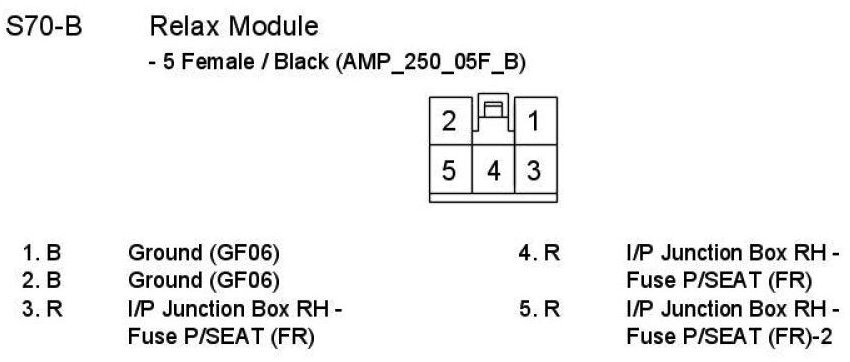

S70-B Relax Module:






S70-C Relax Module:






S70-D Relax Module:
