Driver CCS Control Module (With CCS)

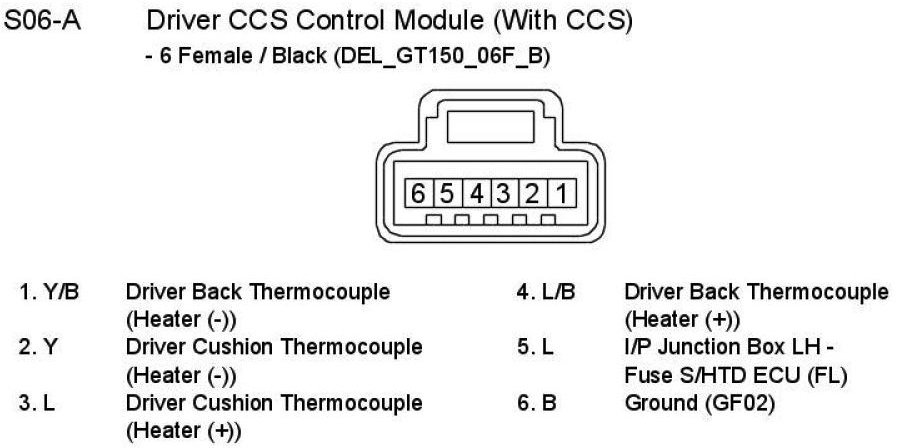

S06-A Driver CCS Control Module (With CCS):

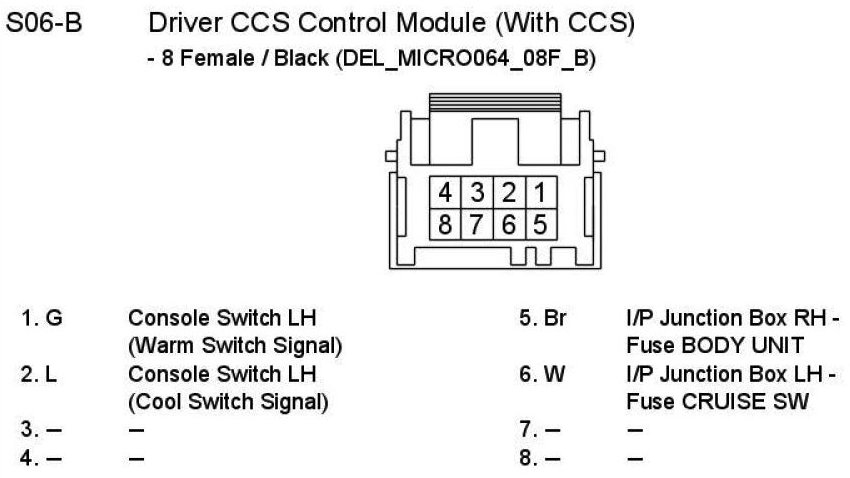

S06-B Driver CCS Control Module (With CCS):

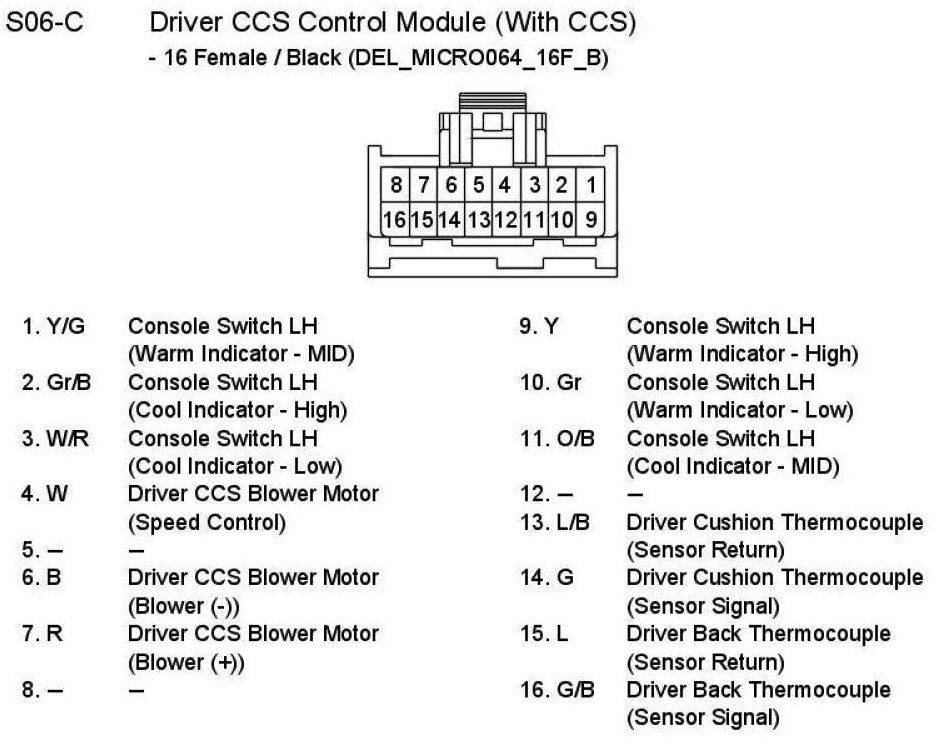

S06-C Driver CCS Control Module (With CCS):
